Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

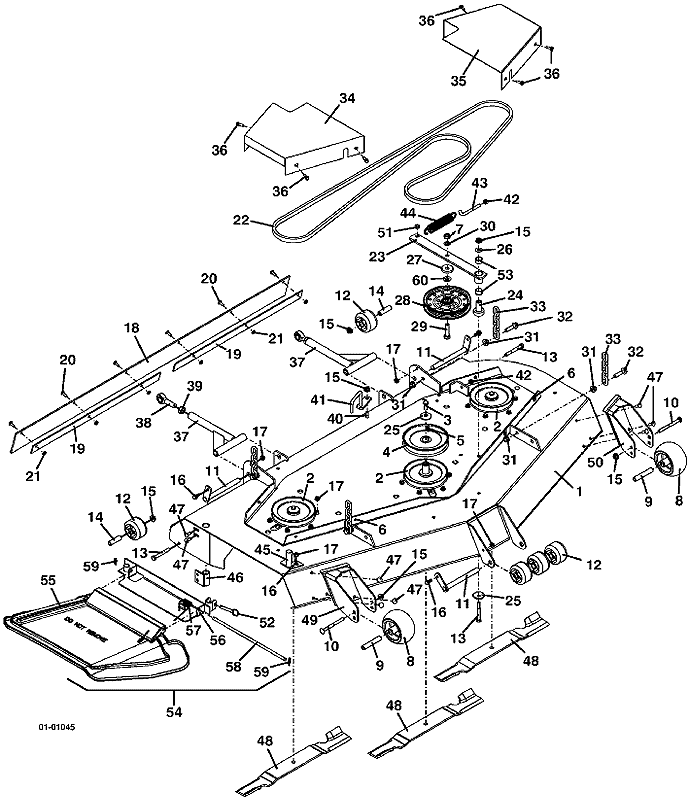

428D • Deck Assembly M161

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Deck Weldment - M161/07

644160

2

Sheave

415892

3

Hex Bolt .375-24 x 1

243331

4

Sheave

415897

5

Square Key .250 x .875

281582

6

Speed Nut .250-20

254431

7

Nut .500-13

254470

8

Anti-Scalp Center Hub Wheel

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Roller

426122

13

Hex Bolt

243365

14

Roller Mount Spacer

902284

15

Whiz Nut

253043

16

Hex Flange Whiz Bolt

253192

17

Whiz Nut

253035

18

M1 61 Deck Flap

424204

19

Deflector Strap 220S 61

774337

20

Truss Whiz Bolt

253177

21

Whiz Nut

253025

22

Belt

382085

23

M1 52/61 Idler Arm

824488

24

Pedestal Bearing .750 x 1.5

121650

25

Cupped Washer

257041

26

Washer

257040

27

Retainer Washer .531 x 1.625

883804

28

Idler

393250

29

Hex Bolt .500-13 x 2

243580

30

Lock Washer

257432

31

Whiz Nut

253058

32

Hex Bolt GR 8

243458

33

Chain - 5 Links M1

820331

34

right Belt Shield - Mid 61

722451

35

left Belt Shield - Mid 61

722452

36

Hex Whiz Bolt .25-20 x .75

253175

37

Radius Arm Assembly - 328 F/A

604673

38

Rod End

265665

39

Nut .625-18

254493

40

Flange Whiz Bolt

253203

41

M1 Deck Belt Guide

644086

42

Nut .375-16

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Clevis Shaft

643235

46

Pivot Mount

643632

47

Carriage Bolt

247130

48

High Lift Notch Blade - 21"

320245

-

Medium Lift Blade - 21"

320242

-

Contour Blade - 21"

320244

-

Extreme High Lift Blade - 21"

320246

49

Ant-Scalp Roller Mount - right

643842

50

Anti-Scalp Roller Mount - left

643695

51

Nylon Bearing

422520

52

Hitch Pin .375 x 2

260400

53

Oilite Bearing

121756

54

Flex Discharge Shield Assembly

604749

55

Flex Discharge Shield

422042

56

Flex Discharge Shield Mount

644767

57

Torsion Spring

284406

58

Flex Discharge Shield Pin

780650

59

Cotter Ring

260608

60

Washer

257062
