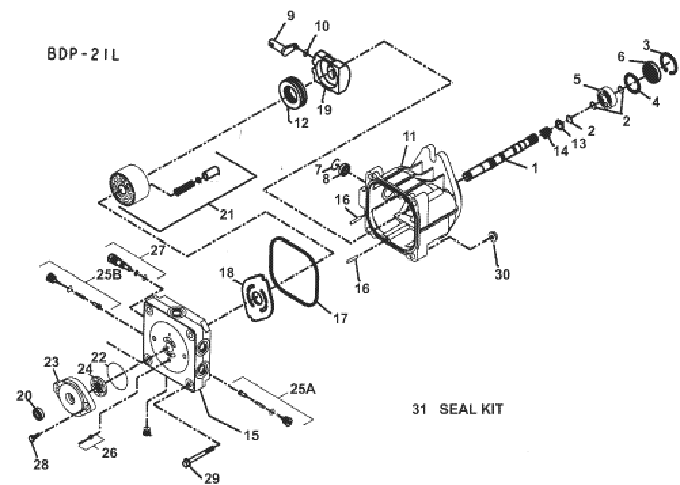

Item #
Description
Part Number
1
Tapered Shaft Sub Assembly
130178
2
Wire Retaining Ring
130170
3
Seal Retaining Ring
130088
4
Spacer
130086
5
Input Bearing
130080
6
Input Seal
125363
7
130028
8
Trunnion Seal
125360
9
Trunnion Arm
130035
10
Slot Guide
130065
11
Housing
130056
12
Thrust Bearing
130012
13
Block Thrust Washer
130220
14
Block Spring
130015
15
End Cap
130040
-
End Cap (without plate)
130047
16
Dowel Pin
130046
17
Square Cut Seal Ring
130180
18
Valve Plate
130210
19
Swashplate - NOT AVAILABLE
000000
20
Seal
125165
21
Cylinder Block Kit
130150
22
Seal Ring
130020
23
Charge Cover
130022
24
Gerotor Set
130060
25
Check Valve Kit
130156
Check Plug O-Ring
130031
26
charge Relief Kit
130027
27
Bypass Valve Assembly - NOT AVAILABLE
Bypass Valve Backup Ring
130017
Bypass Valve O-Ring
130018
28
Hex Screw
243205
29
Flange Head Hex Screw - NOT AVAILABLE
30
Hex Flange Nut
130075
31
Seal Kit
130177
