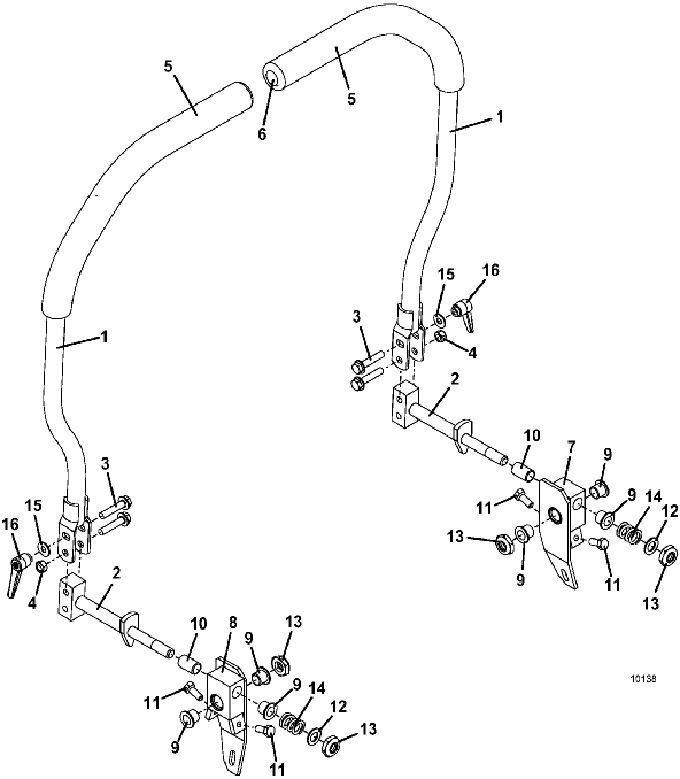

430D • Steering Assembly
2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Steering Lever Assembly - Wide STD |
604778 |
2 |
Adjustable Steering Lever Mount |
643926 |
3 |
Hex Flange Whiz Bolt |
253195 |
4 |
Nylon Insert Nut |
253450 |
5 |
Handle Grip |
422179 |
6 |
Vinyl Cap .75 ID |
422095 |
7 |
200V right Steering Pivot with Stop & Bearings |
604713 |
8 |
200V left Steering Pivot with Stop & Bearings |
604714 |
9 |
Sleeve Bearing with Flange |
422556 |
10 |
Sleeve Bearing |
422557 |
11 |
Hex Bolt |
243197 |
12 |
Washer |
257063 |
13 |
Nylon Insert Nut |
253470 |
14 |
Compression Spring |
283324 |
15 |
Flat Washer |
257019 |
16 |
Adjustable Lever Nut |
254438 |
