Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

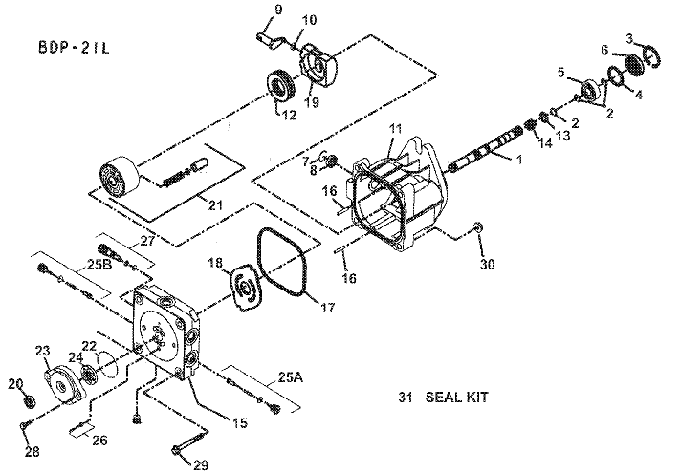

430D • Pump Assembly

2012

Pump Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Return to 430D Index Return to Top

Item #

Description

Part Number

1

Tapered Shaft Sub Assembly

130178

2

Wire Retaining Ring

130170

3

Seal Retaining Ring

130088

4

Spacer

130086

5

Input Bearing

130080

6

Input Seal

125363

7

Seal Retaining Ring

130028

8

Trunnion Seal

125360

9

Trunnion Arm

130035

10

Slot Guide

130065

11

Housing

130056

12

Thrust Bearing

130012

13

Block Thrust Washer

130220

14

Block Spring

130015

15

End Cap

130040

-

End Cap (without plate)

130047

16

Dowel Pin

130046

17

Square Cut Seal Ring

130180

18

Valve Plate

130210

19

NOT AVAILABLE

000000

20

Seal

125165

21

Cylinder Block Kit

130150

22

Seal Ring

130020

23

Charge Cover

130022

24

Gerotor Set

130060

25

Check Valve Kit

130156

-

Check Plug O-Ring

130031

26

charge Relief Kit

130027

27

NOT AVAILABLE

000000

-

Bypass Valve Backup Ring

130017

-

Bypass Valve O-Ring

130018

28

Hex Screw

243205

29

NOT AVAILABLE

000000

30

Hex Flange Nut

130075

31

Seal Kit

130177
