430D • Seat & ROPS Assembly

2014

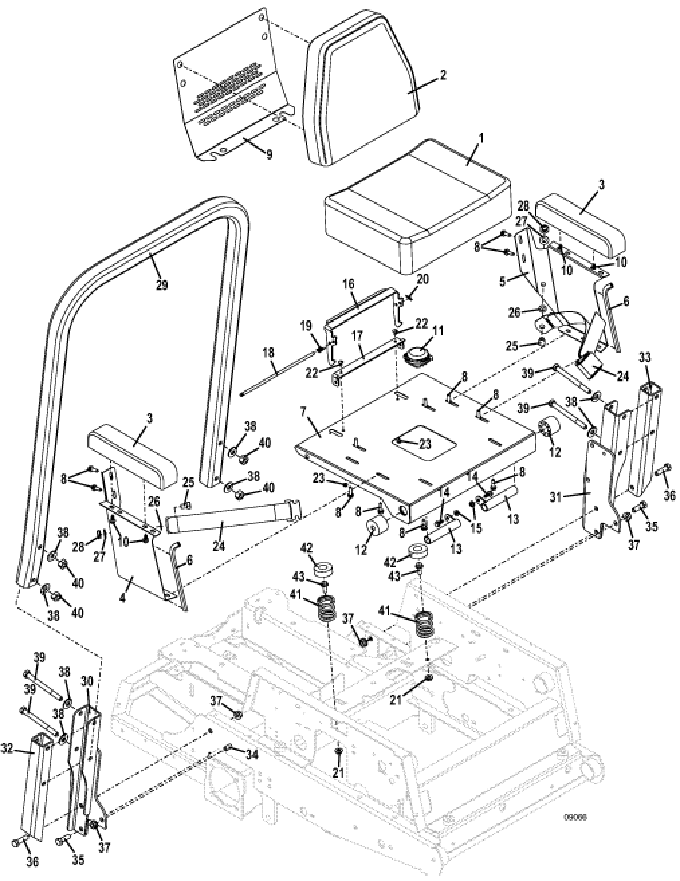

Seat and ROPS Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Cordura Seat Cushion

321518

2

Cordura Back Cushion, with Logo

321519

3

Contoured Cordura Arm Rest

321523

4

right Seat Side with Raised Backrest

723433

5

left Seat Side with Raised Backrest

723434

6

Seat Edge Trim

822630

7

300S Dual Latch Seat Mount

643932

8

Hex Flange Whiz Bolt

253193

9

Raised Backrest Seat Rein

722884

10

Hex Flange Whiz Bolt

253191

11

Twist-In Seat Switch

183871

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Dual Latch

754240

17

Dual Latch Mount Bracket

754226

18

Seat Latch Pivot Pin

730230

19

Torsion Spring

284408

20

Cotter Ring

260606

21

Whiz Nut

253043

22

Truss Whiz Bolt

253176

23

Whiz Nut

253025

24

Non Retracting Seat Belt

324200

25

Hex Bolt

243551

26

Washer

257063

27

Washer

257062

28

Nylon Insert Nut

253470

29

ROPS

324104

30

M1 ROPS Mount - right

643862

31

M1 ROPS Mount - left

643863

32

400 ROPS Spacer Tube - right

942518

33

400 ROPS Spacer Tube - left

942519

34

Hex Bolt

243565

35

Hex Bolt

243570

36

Hex Bolt

243575

37

Flange Spiral Lock Nut

253067

38

Blade Spindle Hardened Washer

257057

39

Hex Bolt

243630

40

Lock Nut

253930

41

Compression Spring

283516

42

Seat Spring Cap

422127

35

Whiz Flange Bolt

253203

Return to 430D Index Return to Top
