Genuine OEM Grasshopper® Mower Parts Diagrams

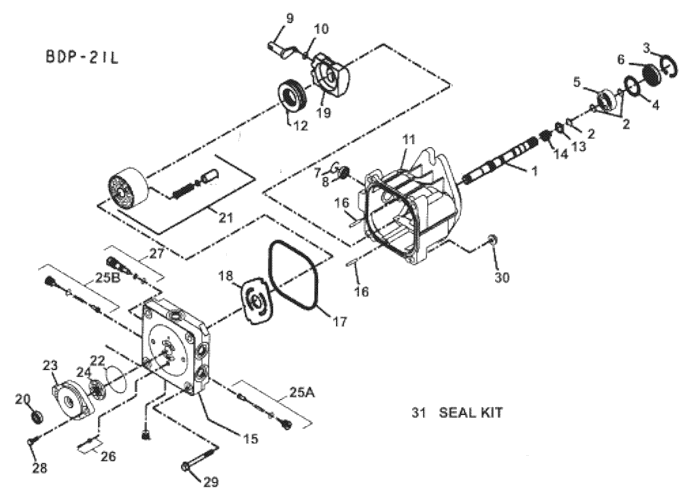

432 • Pump Assembly

2002

Pump Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Return to 432 Index Return to Top

Item #

Description

Part Number

1

Tapered Shaft Sub Assembly

130178

2

Wire Retaining Ring

130170

3

Seal Retaining Ring

130088

4

Spacer

130086

5

Input Bearing

130080

6

Input Seal

125363

7

Seal Retaining Ring

130028

8

Trunnion Seal

125360

9

Trunnion Arm

130035

10

Slot Guide

130065

11

Housing

130056

12

Thrust Bearing

130012

13

Block Thrust Washer

130220

14

Block Spring

130015

15

End Cap

130040

-

End Cap (without plate)

130047

16

Dowel Pin

130046

17

Square Cut Seal Ring

130180

18

Valve Plate

130210

19

Swashplate - NOT AVAILABLE

000000

20

Seal

125165

21

Cylinder Block Kit

130150

22

Seal Ring

130020

23

Charge Cover

130022

24

Gerotor Set

130060

25

Check Valve Kit

130156

-

Check Plug O-Ring

130031

26

charge Relief Kit

130027

27

Bypass Valve Assembly - NOT AVAILABLE

000000

-

Bypass Valve Backup Ring

130017

-

Bypass Valve O-Ring

130018

28

Hex Screw

243205

29

Flange Head Hex Screw - NOT AVAILABLE

000000

30

Hex Flange Nut

130075

31

Seal Kit

130177
