Genuine OEM Grasshopper Lawn Mower Parts

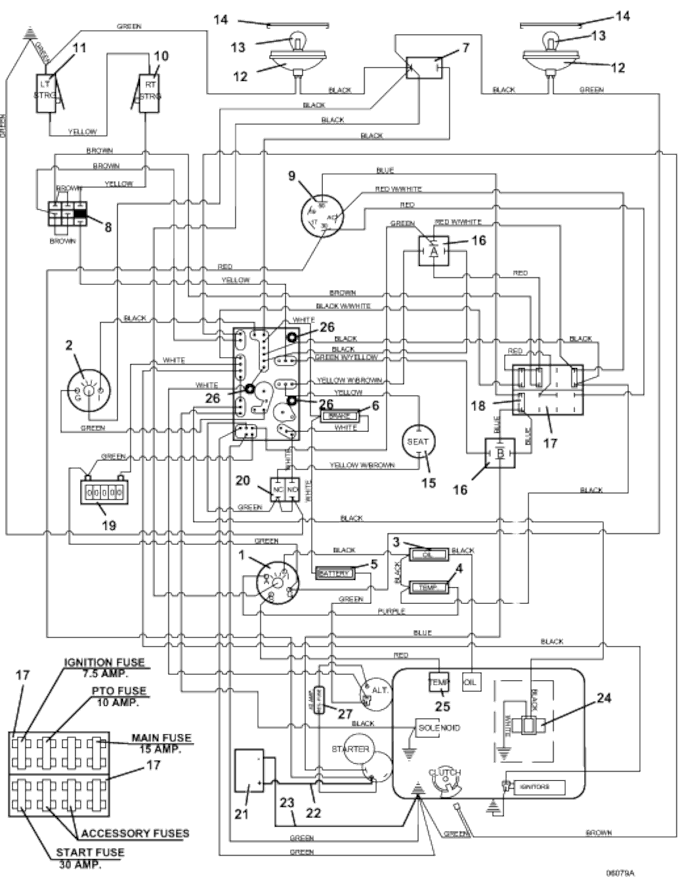

Genuine OEM Grasshopper® Mower Parts Diagrams

432 • Electrical Wiring

2008

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temperature Gauge

141160

-

Light Gauge

141210

2

Voltmeter Gauge

141200

-

Light Gauge

141210

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Light Switch

184179

8

Push / Pull Switch

183925

9

Kubota Sealed Keyed Switch

183827

-

Double Notch Kubota Keyed Ignition

101106

10

Lever Switch

183860

-

right Steering Switch Mount

720160

11

Lever Switch

183860

-

left Steering Switch Mount

720161

12

Flood Worklamp

182253

13

Light Bulb for Worklamp

182005

14

Snap-Mount Bezel for Worklamp

182251

15

Twist-In Seat Switch

183871

16

Relay - 12 volt DC

184272

16

Type 1 6mm Push-On

184570

-

.250 Faston Terminal

184581

-

5-Way Female Connector

184926

17

Fuse Block

181722

-

1 Wire Clip

184458

-

2 Wire Clip

184460

-

Double Wire Clip

184472

18

Fuse 30 Amp Auto

181470

-

Fuse 7.5 Amp Auto

181460

-

Fuse 10 Amp Auto

181462

-

Fuse 15 Amp Auto

181465

19

Snap-in Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 volt Side Post Wet Battery

180130

-

12V Sidepost Dry Battery

180131

-

Hex Bolt

243309

-

Battery Box Assembly with Strap

603104

-

Battery Hold Down Strap

604785

22

42" Red Battery Cable

180340

-

Red Alternator Boot Terminal

425215

-

Battery Boot Terminal

425219

-

Battery Boot

425223

23

Black 20" Battery Cable

180295

24

Electric Fuel Pump

101510

25

Temperature Sender

141222

26

PC Board Support Spacer

423690

27

Inline Regulator Fuse Holder

604888

-

40 Amp Auto ATC Fuse

181475

28

Toggle

184084

-

Boot Toggle Switch

425200

-

Keyed Washer

770005

29

400's Gas Wiring Assembly

605927

30

M1 321D Console Decal

161142

31

Cutting Height Decal

162189
