Genuine OEM Grasshopper Lawn Mower Parts

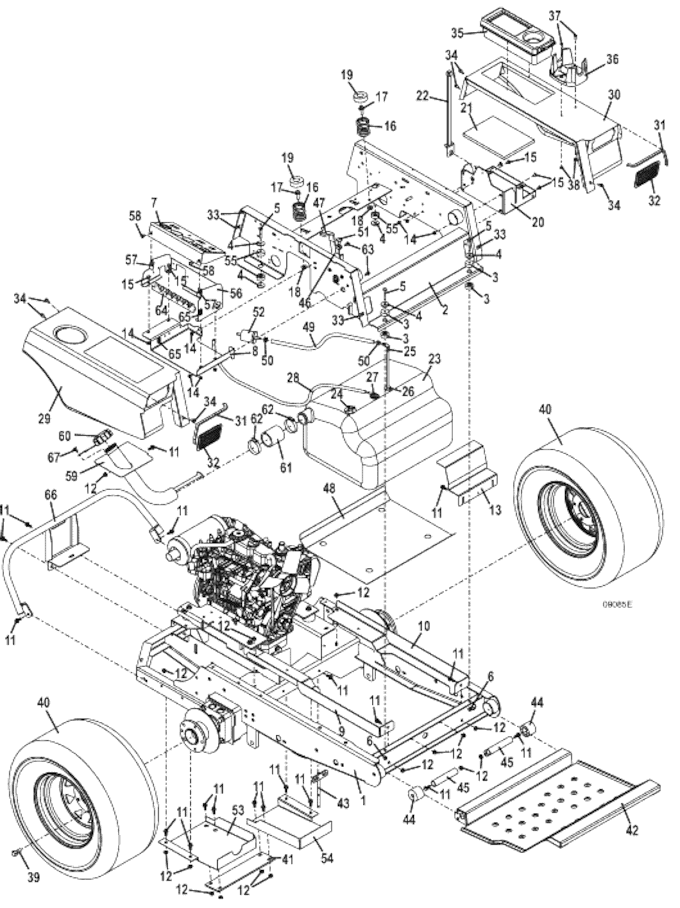

Genuine OEM Grasshopper® Mower Parts Diagrams

432 • Tractor Assembly

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

432 Lower Frame

644376

2

Upper Frame

645367

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

Liquid Cooled Console w/Decal

693122

8

Console Mount

645052

9

300/400 Tank Rail - right

645802

10

300/400 Tank Rail - left

645803

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

300/400 Front Tank Bracket

723042

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Flange Bolt

253203

18

Whiz Nut

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

M1 Gas Tank Assembly - Electric

605802

24

Fuel Sender

141235

-

Electric Fuel Sender Grommet

424274

-

Grommet

424275

25

Fuel Tube

363929

26

Fuel Tube Bushing

101875

27

Fuel Tank Valve Kit

606830

28

Fuel Vapor Hose

821763

29

3/400 Right Fender w/Decal

693222

30

3/400 Left Fender w/Decal

693223

31

Trim

822632

32

Hole Plug Work Lamp

422079

33

Speed Nut

254431

34

Hex Whiz Bolt

253175

35

Tool Box

422040

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel & Tire 24 x 12 x 12

483965

-

Turf Tire 24 x 12 x 12

482486

-

Bar Tread Tire Only 24 x 12 x 12 AT101

482487

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

12" Wheel & Bar Tread Tire (right)

483968

-

12" Wheel & Bar Tread Tire (left)

483969

41

Belt Guard Strap

783277

42

M1 On-Frame Foot Rest

644256

43

M1 Deck Belt - Belt Guide

645005

44

Seat Isolator

424095

45

Seat Hinge Pin

644618

46

Throttle/Choke Mount Assembly

605826

-

Throttle Cable

323648

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Stop

722736

47

Handle Grip

422150

48

M1 Fuel Tank Shield

722949

49

Fuel Line Hose

821718

50

Spring Hose Clamp

280261

51

Mechanical Choke

142235

52

Kubota Prefilter Fuel Filter

101005

53

Right Mule Belt Shield

723088

54

Left Mule Belt Shield

723089

55

Step Bushing

257038

56

Console Frame

751036

57

Plastic Retainer Nut

254432

58

Bolt

253180

59

300/400 Fuel Filler

644887

60

Sealed Tether Fuel Cap Kit

606360

61

Fuel Tank Filler Hose

422027

62

Screw Type Hose Clamp

280305

63

Hex Whiz Bolt

253173

64

Relay Mount

773103

65

Grommet

424216

66

Bumper

645572

67

.250 Plastic Push Stud

246975

68

432 Decal Set

605419
