Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

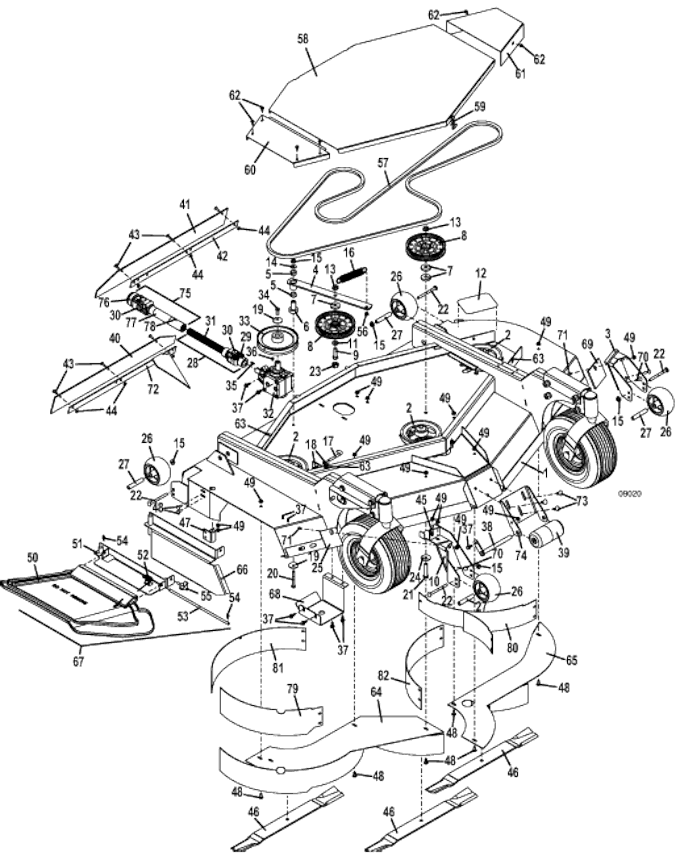

Mower Assembly • 3472R Front Mount Deck

2009

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3472R PowerFold Mower Deck

645173

2

Sheave

414745

3

left Anti-Scalp Roller Mount

643695

4

Idler Arm Assembly

824580

5

Oilite Bearning

121756

6

Pedestal Bearing

121650

7

Washer

883804

8

Idler

393250

9

Hex Bolt

243575

10

right 3472 Anti-Scalp Roller Mount

645181

11

Lock Washer

257062

12

Step Tread

420904

13

Flange Spiral Lock Nut

253067

14

Washer

257040

15

Whiz Nut

253043

16

Extension Spring

283848

17

Idler Adjustment J Bolt

730391

18

Nut

254450

19

Cupped Washer

257041

20

Hex Bolt

243365

21

Hex Bolt

243355

22

Carriage Bolt

247310

23

Idler Arm Stabilizer Cap

423670

24

Washer

257059

25

right Roller Spacer

901355

26

Anti-Scalp Center Hub Wheel

484230

27

Tube Bearing

942137

28

ASM 11.0 UN Half Shaft

398527

29

Yoke

401010

30

Cross & Bearing

121010

31

#6 x 11 Yoke & Shaft

402611

32

.875 Counter Clockwise H0117 Right Angle Gearbox

390027

33

Sheave

415893

34

Hex Bolt

243331

35

Woodruff Key

281833

36

Woodruff Key

281828

37

Hex Flange Whiz Bolt

253192

38

Roller Lock Pin

644512

39

Center 2 Piece Roller Assembly

603725

40

9772 right Deck Flap

424213

41

9772/3472 left Deck Flap

424214

42

right Deflector Strap

774337

43

Philips Truss Whiz Bolt

253179

44

Whiz Nut

253025

45

Speed Nut

254448

46

25" Medium Lift Blade

320250

-

25" Contour Blade

320252

-

25" High Lift Notch Blade

320253

-

25" Extreme High Lift Notch Blade

320254

-

25" High-Low Mulch Blade

320255

47

Vac Housing Pivot Mount

643632

48

Carriage Bolt

247130

49

Whiz Nut

253035

50

Flex Discharge Shield

422042

51

Discharge Shield Mount

644570

52

Torsion Spring

284406

53

Flex Discharge Shield Pin

780650

54

Cotter Ring

260608

55

3-Prong Head Deck Stud (Knob)

252821

56

Nylon Bearing

422520

57

Belt

382099

58

3472 Center Shield Assembly

604739

59

Rubber Draw Latch

281300

60

3472 right Belt Shield

723502

61

3472 left Belt Shield

723501

62

Hex Whiz Bolt

253173

63

Speed Nut

254431

64

right Mulch Plate

644612

65

left Mulch Plate

644613

66

3452/61/72 Mulch End Cap

644058

67

Flex Discharge Shield Assembly

604317

68

3472 Gearbox Shield

729931

69

Roller Spacer

775068

70

Carriage Bolt

247135

71

Hex Flange Whiz Bolt

253193

72

Rear Deflector

644681

73

Carriage Bolt

247253

74

Roller Mount

755071

75

9.75 Quick Disconnect UN Half Sleeve

398918

76

Quick Disconnect Splined Yoke

401019

77

#6 Yoke with Sleeve

401018

78

Zerk Grease Fitting

280740

79

3772R Right Front Bolt-On Fill Shroud

855116

80

Bolt-On Shroud Fill

644276

81

Right Lower Various Shroud

855125

82

Left Lower Various Shroud

855126

83

3472 Decal Set

603284
