Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

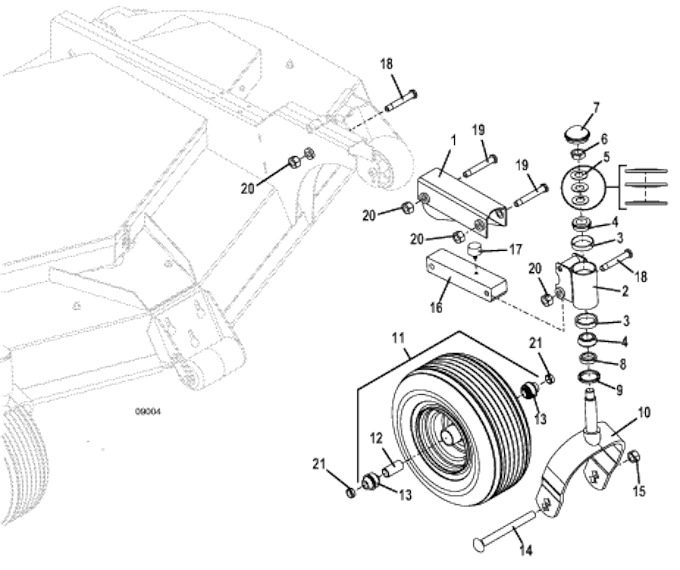

Wheel Lift Assembly • 3472R Front Mount Deck

2009

Wheel Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3472/3572 right Lift Channel

645530

-

3472/3572 left Lift Channel

645531

2

3472 Deck Fork Housing

824983

3

Bearing Cup

123522

4

Taper Bearing

122522

5

Spring Washer

257320

6

Nylon-Top Jam Lock Nut

254505

7

Domed Dust Cap

481434

8

Spacer

282615

9

Seal

125855

10

3472 Fork & Lock Nut Assembly

604369

11

Semi-Pneumatic Wheel & Bearing Assembly 13 x 6.5 x 6

603976

12

Center Rear Axle Spacer

902429

13

DP Wheel Ball Bearing

120048

14

Carriage Bolt

247725

15

Lock Nut

253970

16

Deck Stabilizer with Bumper

822312

17

Rubber Bumper

424053

18

Hex Bolt

243609

19

Hex Bolt

243614

20

Lock Nut

253930

21

Axle Spacer

902422

Return to 3472R Index Return to Top
