Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

3572R Rear Discharge Front Mount Deck

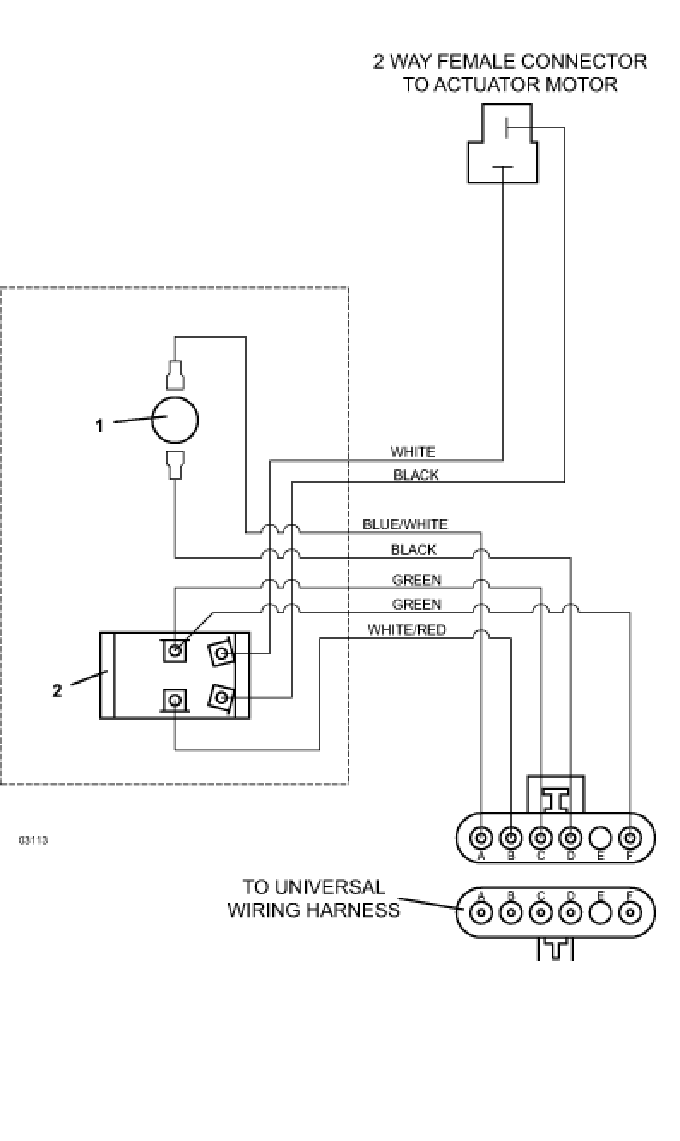

Powerfold Wiring

2011

Wiring for Powerfold Actuator

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Snap Mount Plunger SPST NC Switch

183867

2

Toggle

184084

-

Toggle Switch Boot

425200

-

Keyed Washer

770005

3

Deck Tilt/Height Adjustment Wiring Assembly

605965

Return to 3572R Index Return to Top
