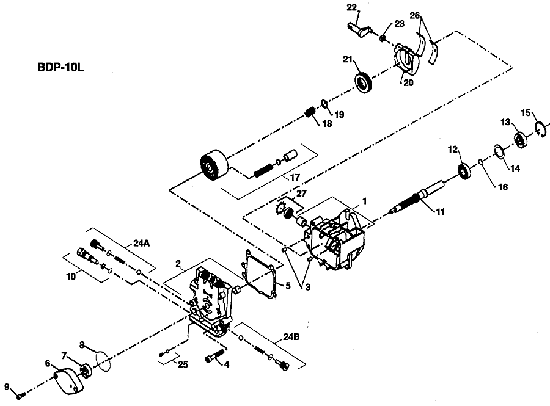

1

Housing Kit - 10L

130050

2

End Cap

130041

3

Dowel Pin

130045

4

Socket HD Screw M8

270080

5

End Cap Gasket

130038

6

Charge Cover

130023

7

Gerotor Assembly

130061

8

Charge Cover O-Ring

130021

9

Charge Cover Screw - Hex Head M6 x 1.0 x .20

270824

10

not available

000000

-

Bypass Valve Backup Ring

130017

-

Bypass Valve O-Ring

130018

11

Shaft Kit

130179

12

Bearing

130081

13

Input Seal

125364

14

Input Seal Spacer

130085

15

Seal Retaining Ring

130089

16

Input Bearing Retaining Ring

130165

17

Block Kit

130151

18

Block Spring

130014

19

Block Thrust Washer

130218

20

Swashplate

130182

21

Thrust Bearing

130013

22

Trunnion Arm

130036

23

Slot Guide

130065

24

not available

000000

-

Poppet

130155

-

Poppet Spring

130157

-

Check Plug O-Ring

130031

-

Check Plug

130030

25

Charge Relief Kit

130025

26

not available

000000

27

Trunnion Seal Kit

125355

-

Trunnion Seal Retaining Ring

130029

28

Seal Kit

130176
