Genuine OEM Grasshopper® Mower Parts Diagrams
Transmissions • Model G1-G2

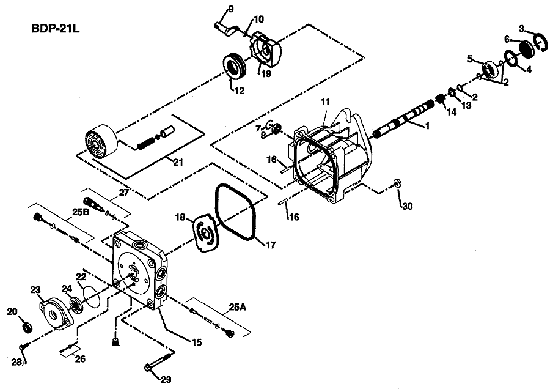

BDP-21L Hydro Pump
Click On a Part Number Below for Details
NOTE: This page is under construction; please select your part(s) number(s)
and call toll-free 866-698-4070 to order.
Item # |
Description |
Part Number |
1 |
Shaft Sub-Assembly |
130178 |
2 |
Wire Retaining Ring |
130170 |
3 |
Input Seal Retaining Ring |
130088 |
4 |
Input Seal Spacer |
130086 |
5 |
Input Bearing |
130080 |
6 |
Seal |
125363 |
7 |
Control Shaft Retaining Ring |
130028 |
8 |
Seal |
125360 |
9 |
Control Shaft |
130035 |
10 |
Slot Guide |
130065 |
11 |
Housing Kit - 21L |
130056 |
12 |
Thrust Bearing |
130012 |
13 |
Block Thrust Washer |
130220 |
14 |
Block Spring |
130015 |
15 |
End Cap Kit |
130040 |
16 |
Dowel Pin |
130046 |
17 |
Square Cut Seal Ring |
130180 |
18 |
Valve Plate |
130210 |
19 |
not available |
000000 |
20 |
Seal |
125165 |
21 |
Piston Block Assembly |
130150 |
22 |
Charge Cover Seal Ring - Square |
130020 |
23 |
Charge Pump Cover |
130022 |
24 |
Gerotor Set |
130060 |
25 |
not available |
000000 |
- |
Poppet |
130155 |
- |
Poppet Spring |
130157 |
- |
Check Plug O-Ring |
130031 |
- |
Check Plug |
130030 |
26 |
Ball & Spring Assembly |
130027 |
27 |
not available |
000000 |
- |
Bypass Valve O-Ring |
130018 |
- |
Bypass Valve Backup Ring |
130017 |
28 |
Charge Cover Screw - Hex Head |
243205 |
29 |
not available |
000000 |
30 |
Hex Flange Nut |
130075 |
31 |
Seal Kit |
130177 |
