Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Transmissions • Model G1-G2

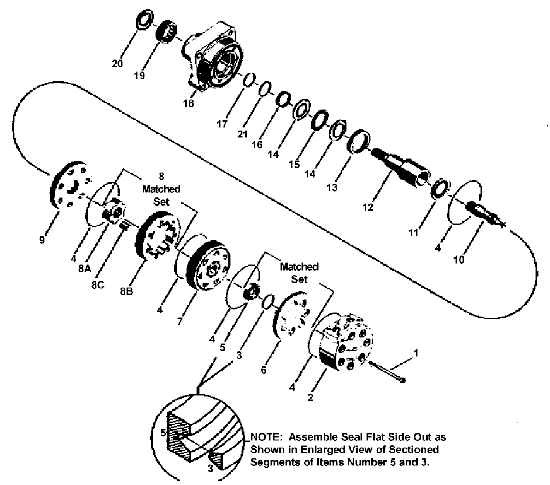

Wheel Motor

Click On a Part Number Below for Details

NOTE: This page is under construction; please select your part(s) number(s)
and call toll-free 866-698-4070 to order.

Item #

Description

Part Number

2

Outer Bearing

130370

3

Inner Bearing

130340

4

Thrust Washer

130346

5

Outer Thrust Bearing

130344

6

T6 Coupling Shaft

130311

7

T6 Drive Link

130320

10

Commutator Seal

130312

12

Dirt and Water Seal

130315

13

Woodruff Key

281860

14

Nut

254522

15

Ring Washer

130306

16

Backup Washer

130305

17

Inner T6 Seal

130341

18

Ring Seal

130386

19

Wear Plate

130330

20

Input Seal Retaining Ring

130642

21

T6 Rotor Set

130383

24

T6 Seal Kit

130385
