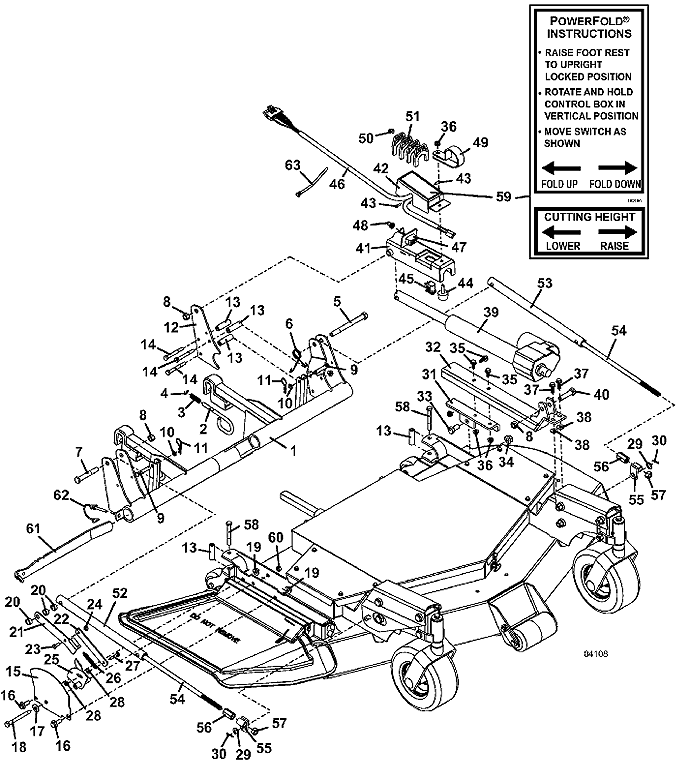

Item # |
Description |
Part Number |
1 |
LIFT ARM ASSY - 3348 |
604546 |
2 |
LATCH PIN - DECK MOUNT |
730433 |
3 |
SPRING - COMPRESSION |
283285 |
4 |
RETAINER EXTERNAL |
263490 |
5 |
HEX BOLT |
243635 |
6 |
SPRING - TORSION |
284423 |
7 |
HEX BOLT |
243609 |
8 |
NUT - LOCK |
253930 |
9 |
CLEVIS PIN |
261362 |
10 |
RETAINER PUSH-ON |
262950 |
11 |
HAIR PIN |
260523 |
12 |
BRACKET-LIFT TUBE PWERFLD 3348 |
776079 |
13 |
SPACER - ROLLER MOUNT |
902284 |
14 |
HEX BOLT |
243240 |
15 |
PLATE - CUTTING HEIGHT DECAL |
773141 |
16 |
BOLT WHIZ FLANGE |
253203 |
17 |
WASHER |
257040 |
18 |
HEX BOLT |
243385 |
19 |
NUT - WHIZ |
253043 |
20 |
SPACER - ACTUATOR STOP |
902282 |
21 |
LINKAGE-INDICATOR ELEC LIFT |
729332 |
22 |
STRAP-INDICATOR ELECTRIC LIFT |
729331 |
23 |
HEX BOLT |
243018 |
24 |
NUT - INSERT-NYLON |
253440 |
25 |
HEIGHT INDICATOR - E/LIFT |
644319 |
26 |
SPRING - EXTENSION |
283762 |
27 |
HEX BOLT |
243030 |
28 |
NUT - WHIZ |
253025 |
29 |
WASHER |
257063 |
30 |
COTTER PIN |
260650 |
31 |
BRACKET - ACTUATOR MOUNT 3348 |
726034 |
32 |
ACTUATOR MOUNT -POWERFOLD 3348 |
644061 |
33 |
HEX BOLT |
243560 |
34 |
NUT - WHIZ |
253066 |
35 |
BOLT WHIZ HEX FLANGE |
253192 |
36 |
NUT - WHIZ |
253035 |
37 |
BOLT WHIZ HEX FLANGE |
253193 |
38 |
WASHER |
257030 |
39 |
ACTUATOR 12V |
180035 |
|
MOTOR - ELECTRIC |
182540 |
40 |
HEX BOLT |
243580 |
41 |
MOUNT - ELECTRIC LIFT SWITCH |
644805 |
42 |
SHIELD - SWITCH MOUNT ELEC LIFT |
722005 |
43 |
MACHINE SCREW-HEX |
250169 |
44 |
BUMPER - W/STUD |
424056 |
45 |
SWITCH-SNAP MT PLUNGER SPST NC |
183867 |
46 |
WIRING ASSY DECK TILT/HGT ADJ |
605945 |
47 |
TOGGLE |
184084 |
|
BOOT - TOGGLE SWITCH |
425200 |
|
WASHER - KEYED |
770005 |
48 |
BOOT - TOGGLE SWITCH |
424500 |
49 |
WASHER - KEYED |
732315 |
50 |
SPACER - .25 THK |
902297 |
51 |
SPACER - POWERFOLD HEIGHT ADJ |
423697 |
52 |
LIFT TUBE 3348RT |
644455 |
53 |
LIFT TUBE - 3348 LT |
644456 |
54 |
ROUND HEAD BOLT |
243670 |
55 |
BRACKET - LIFTROD - 33 SERIES |
644072 |
56 |
SLEEVE NUT - HEIGHT ADJUSTMENT |
321185 |
57 |
NUT |
254470 |
58 |
HEX BOLT |
243365 |
|
NUT - LOCK |
253890 |
59 |
DECAL - POWERFOLD INSTRUCTION |
162160 |
60 |
NUT - LOCK |
253890 |
61 |
TRACTION KIT TOOL - L48 |
783068 |
62 |
LINCH PIN |
261624 |
63 |
WIRE TIE - RELEASABLE |
423149 |
