Genuine OEM Grasshopper® Mower Parts Diagrams

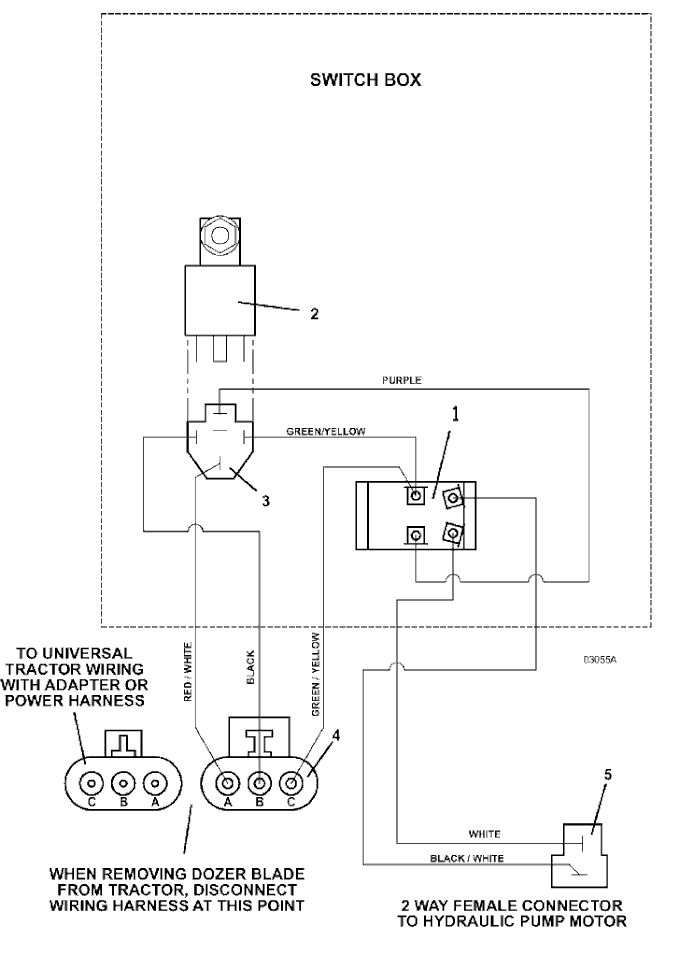

2006 & Older Wiring Diagram for Hydraulic Bi-Directional Manual Lift Dozer Blade

2006 and Older Wiring Diagram
Click On The Part Number For Details

Item #

Description

Part Number

1

Toggle

184084

-

Toggle Switch Boot

425200

-

Keyed Washer

770005

2

12V DC Relay

184272

-

Type 1 6mm Pushon

184570

-

Faston Terminal

184581

-

5-Way Female Connector

184926

3

5-Way Female Connector

184926

4

3-Way Waterproof Female Terminal Connector

184974

5

2-Way Female Connector

184917

6

Dozer Bi-Directional Wire Assembly

604911

Return to Dozer Index Return to Top
