Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Electric Lift Assembly

Actuator Lift

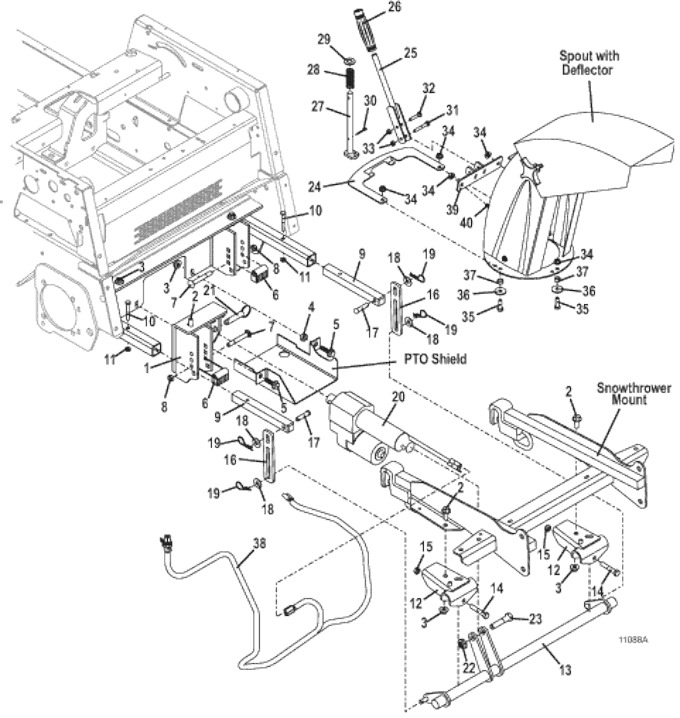

Electric Lift (Actuator) Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Mount

645555

-

Electric Lift Snow Mount

645554

2

Flanged Whiz Bolt

253203

3

Whiz Nut

253043

4

Wheel Motor Spacer

902286

5

Whiz Bolt

253206

6

Deck Mount Bushing

282575

7

Special Carriage Bolt

247280

8

Nylon Insert Nut

253460

9

Electric Lift Mount Arm

783756

10

Hex Bolt

243040

11

Whiz Nut

253025

12

Mount

645553

13

Pivot

645662

14

Hex Bolt

243352

15

Lock Nut

253890

16

Strap

776361

17

Clevis Pin

261355

18

Washer

257040

19

Hair Pin

260523

20

Actuator

180023

21

Hitch Pin

260420

22

Nylon Insert Nut

253470

23

Hex Bolt

243585

24

Stop

729962

25

Spout Handle

643408

26

Handle Grip

422160

27

Sout Lock Rod

643834

28

Compression Spring

283320

29

Washer

257062

30

Cotter Pin

260652

31

Hex Bolt

243038

32

Hex Bolt

243030

33

Nylon Insert Nut

253440

34

Whiz Nut

253035

35

Hex Bolt

243205

36

Retainer Washer

774015

37

Spout Pivot Spacer

903215

38

Snowthrower Joystick Wiring Assembly

605973

39

Manual Spout Handle Bracket

645099

40

Flanged Hex Whiz Bolt

253192
