Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

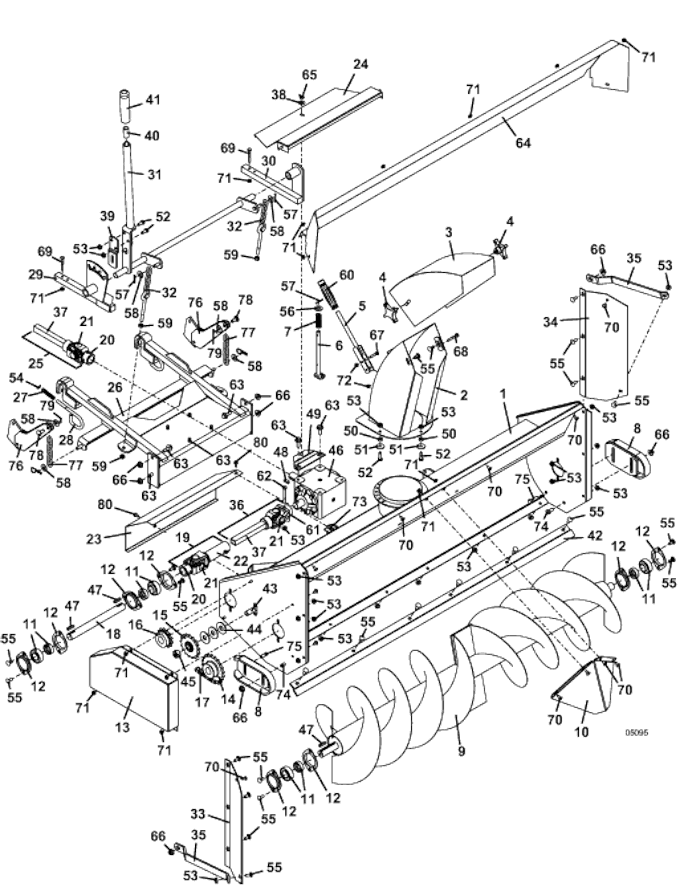

512 • Snowthrower Assembly with Quick-Disconnect Mount

2008 and Older

Snowthrower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Snowthrower Auger Housing(Please Call for Pricing)

693295

2

Spout with Decal

693788

3

Spout Deflector

643277

4

Thumb Screw

252860

5

Spout Handle

643408

6

Spout Lock Rod w/a

643834

7

Compression Spring

283320

8

4.0 Skid

643786

9

512 Snowthrower Auger

643094

10

Snow Deflector

721150

11

Ball Bearing with Lock Collar

120083

12

2 Bolt Flangette

124520

13

Chain Shield

722448

14

Sprocket

417666

15

Idler

393001

16

Sprocket

417631

17

Chain

385448

18

512 Drive Shaft

882229

19

UN Half Sleeve

398916

20

Yoke

401013

21

Cross and Bearing

121010

22

Yoke With Sleeve

401015

23

512 Jack Shaft Shield

721228

24

512 Gearbox Shield

721258

25

UN Half Shaft

398520

26

512 Fixed Mount

603486

27

Compression Spring

283285

28

Deck Mount Latch Pin

730433

29

Lever Mount

643567

30

Left Lift Mount

643570

31

Dozer/Snowthrower Lift Lever Assembly

604514

32

Snowthrower Chain/Bolt

644112

33

Right Side Extension

724292

34

Left Side Extension

724293

35

Extension Brace

732909

36

Shear Half Shaft Assembly

603395

37

Yoke And Shaft

402605

38

Washer

257030

39

Lever Guide

732593

40

Push Rod Thumb Button

821675

41

Thumb Release Handle Grip

833540

42

512 Snowthrower Blade

725261

-

Carriage Bolt

247130

-

Whiz Nut

253035

43

Hex Bolt

243810

44

Washer

257080

45

Lock Nut

253970

46

512 Snow Thrower Gear Box

831875

47

Square Key

281586

48

Woodruff Key

281839

49

Gear Box Shield Bracket

643008

50

Spout Pivot Spacer

903215

51

Retainer Washer

774015

52

Hex Bolt

243205

53

Whiz Nut

253035

54

External Retainer

263490

55

Carriage Bolt

247130

56

Washer

257062

57

Cotter Pin

260652

58

Washer

257040

59

Nut

254450

60

Handle Grip

422160

61

512 Drive Shaft Yoke

831617

-

Oilite Bearing

121781

62

Hex Bolt

243235

63

Flanged Whiz Bolt

253203

64

512 Extension

723367

65

Nut

254443

66

Whiz Nut

253043

67

Hex Bolt

243030

68

Hex Bolt

243038

69

Hex Bolt

243040

70

Truss Whiz Bolt

253176

71

Whiz Nut

253025

72

Nylon Insert Nut

253440

73

Speed Nut

254431

74

Hex Bolt

243330

75

Hex Bolt

243335

76

Rocker Arm Extension

644706

77

Lift Chain

820320

78

Clevis Pin

261339

79

Cotter Pin

260648

80

Hex Whiz Bolt

253173
