Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

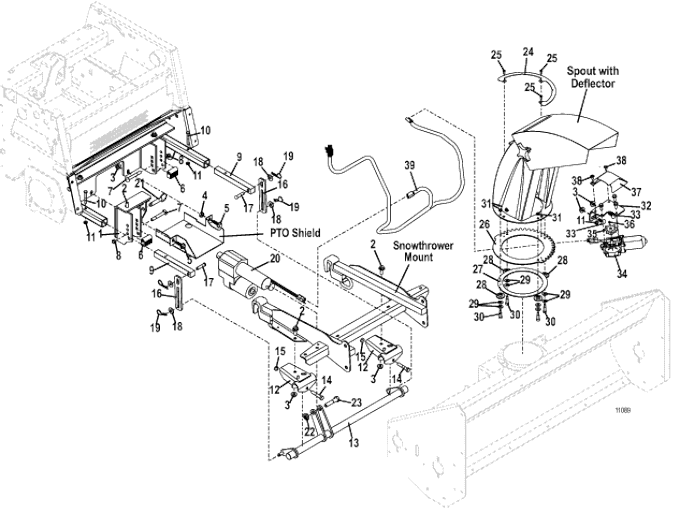

Electric Lift & Electric Spout Assembly

Electric Lift and Electric Spout Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Mount

645555

-

600 Electric Lift Snowthrower Mount

645555

2

Flanged Whiz Bolt

253203

3

Whiz Nut

253043

4

Wheel Motor Spacer

902286

5

Whiz Bolt

253206

6

Deck Mount Bushing

282575

7

Special Carriage Bolt

247280

8

Nylon Insert Nut

253460

9

Electric Lift Mount Arm

783756

10

Hex Bolt

243040

11

Whiz Nut

253025

12

Mount

645553

13

Pivot

645662

14

Hex Bolt

243352

15

Lock Nut

253890

16

Strap

776361

17

Clevis Pin

261355

18

Washer

257040

19

Hair Pin

260523

20

Actuator

180023

21

Hitch Pin

260420

22

Nylon Insert Nut

253470

23

Hex Bolt

243585

24

Shield

722944

25

Hex Machine Screw

250169

26

Gear

774297

27

Lower Spout Ring

423521

28

Roller

822425

29

Washer

257020

30

Shoulder Bolt

259705

31

Whiz Nut

253025

32

Mount

725583

33

Carriage Bolt

247253

34

Motor

182560

35

Gear

885025

36

Set Screw

259302

37

Shield

722945

38

Bolt

253180

39

Snowthrower Joystick Wire Assembly

605973
