Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

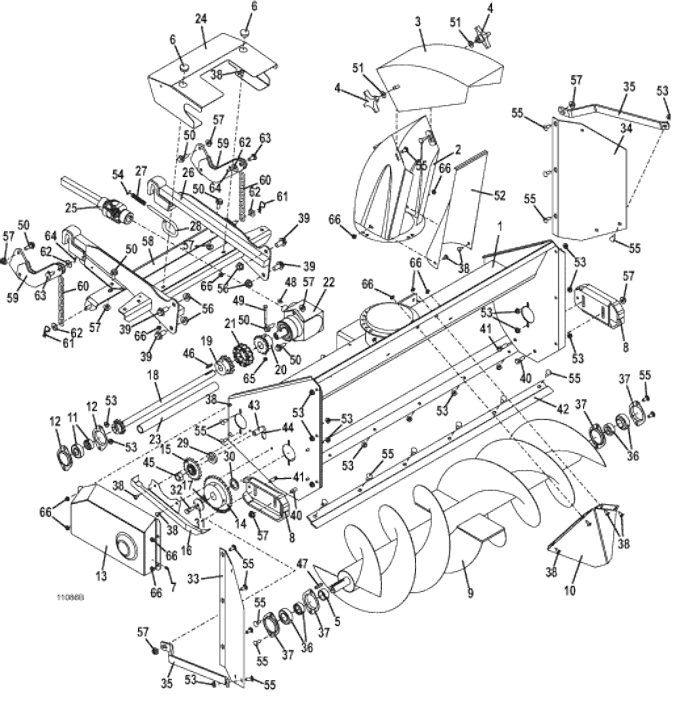

412 • Snowthrower Assembly with Quick-Disconnect Mount

2012 - Present

Snowthrower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Snowthrower Auger Housing with Decal

693291

2

Spout with Decal

693788

3

Spout Deflector

643277

4

Thumb Screw

252860

5

Spacer

902542

6

1 Inch Diameter Plastic Hole Plug

422075

7

Grease Zerk

280776

8

Snowthrower Skid

726157

9

Snowthrower Auger with 1" Shaft

643089

10

Snow Deflector

721150

11

Ball Bearing with Lock Collar

120062

12

2 Bolt Flangette

124510

13

Chain Shield

722886

14

Sprocket

417549

15

Idler

392995

16

Channel

721510

17

Chain

385258

18

Sprocket Shaft

645780

19

Sprocket Coupler

418420

20

Sprocket Coupler

603746

21

Chain Coupler

388300

22

Gearbox

831874

23

Shaft Shield

822572

24

Shield

722946

25

UN Half Shaft

398528

-

Cross & Bearing

121010

-

Yoke

401010

-

Yoke & Shaft

402608

26

Quick-Disconnect Snowthrower Mount Assembly

603739

27

Compression Spring

283285

28

Deck Mount Latch Pin

730433

29

Spacer

884308

30

Washer

257107

31

Cupped Washer

257041

32

Hex Bolt

243331

33

Right Side Extension

729698

34

Left Side Extension

729699

35

Extension Brace

732907

36

Ball Bearing with Lock Collar

120083

37

2 Bolt Flangette

124520

38

Truss Whiz Bolt

253176

39

Whiz Bolt

253243

40

Hex Bolt

243330

41

Hex Bolt

243335

42

Snowthrower Blade

724243

43

Hex Bolt

243810

44

Washer

257080

45

Lock Nut

253970

46

Square Key

281560

47

Square Key

281586

48

Woodruff Key

281833

49

Hex Bolt (Shear)

243052

50

Flanged Whiz Bolt

253203

51

Washer

257030

52

Snowthrower Liner

722881

53

Whiz Nut

253035

54

External Retainer

263490

55

Carriage Bolt

247130

56

Whiz Nut

253066

57

Whiz Nut

253043

58

Snowthrower Hydraulic Lift Bracket

645105

59

Rocker Arm Extension

644713

60

Rear Lift Chain

820323

61

Hair Pin

260523

62

Washer

257040

63

Clevis Pin

261339

64

Cotter Pin

260648

65

Nylon Insert Nut

253440

66

Whiz Nut

253025
