Item # |
Description |
Part Number |
- |

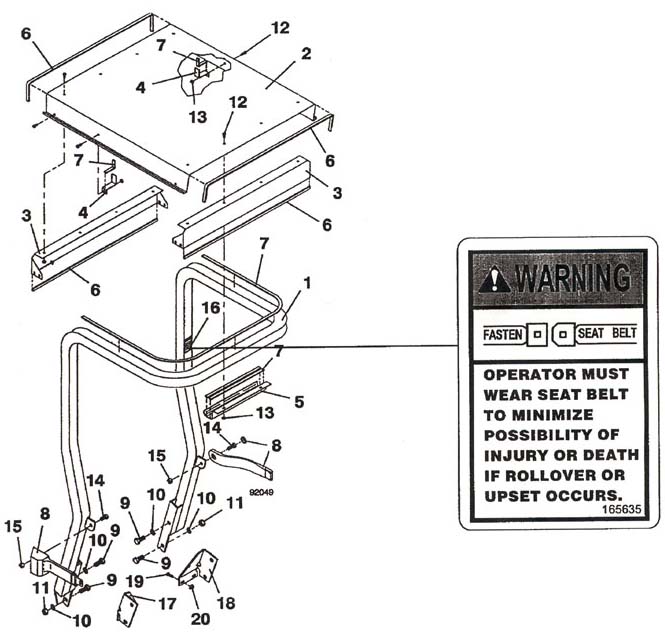

ROPS Kit - 2 Post w/Canopy & Seat Belt |
533380 |
1 |
Roll Bar With Hardware |
324100 |
2 |
Roll Bar Canopy |
324110 |
3 |
End Panel |
324135 |
4 |
Side Bracket |
324145 |
5 |
Front Bracket |
324140 |
6 |
Vinyl Edge Protector |
422050 |
7 |
Doortite |
425605 |
8 |
Seat Belt - Retractable |
324122 |
9 |
Bolt |
243800 |
10 |
Lock Washer |
257452 |
11 |
Nut |
254490 |
12 |
Bolt |
253173 |
13 |
Nut |
253025 |
14 |
Bolt |
243565 |
15 |
Lock Nut |
253930 |
16 |
Decal - Seat Belt Warning |
165635 |
17 |
Gusset - Kohler Right |
726131 |
18 |
Gusset - Kohler Left |
726132 |
19 |
Bolt |
253203 |
20 |
Nut |
253043 |
