Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

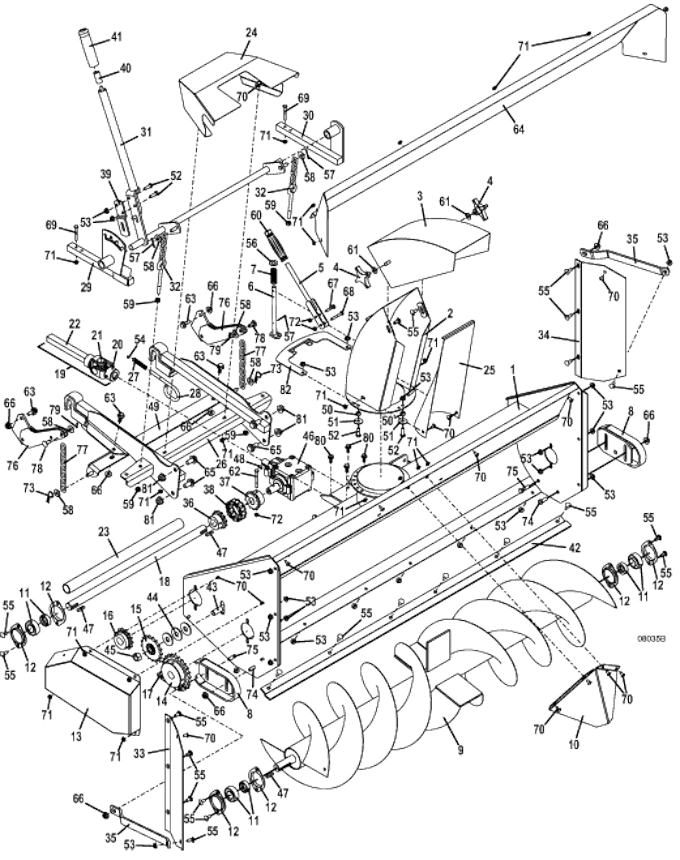

512 • Snowthrower Assembly with Quick-Disconnect Mount

2009 - 2011

Snowthrower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Snowthrower Auger Housing(Please Call for Pricing)

693296

2

Spout with Decal

693788

3

Spout Deflector

643277

4

Thumb Screw

252860

5

Spout Handle

643408

6

Spout Lock Rod w/a

643834

7

Compression Spring

283320

8

4.0 Skid

643786

9

512 Snowthrower Auger

643094

10

Snow Deflector

721150

11

Ball Bearing with Lock Collar

120083

12

2 Bolt Flangette

124520

13

Chain Shield

722883

14

Sprocket

417676

15

Idler

393001

16

Sprocket

417631

17

Chain

385450

18

512 Drive Shaft

882228

19

UN Half Sleeve

398528

20

Yoke

401010

21

Cross and Bearing

121010

22

Yoke and Shaft

402608

23

512 Shaft Shield

822571

24

Snowthrower Shield

722887

25

Snowthrower Liner

722881

26

Snowthrower Mount Assembly

603739

27

Compression Spring

283285

28

Deck Mount Latch Pin

730433

29

Lever Mount

643567

30

Left Lift Mount

643570

31

Dozer/Snowthrower Lift Lever Assembly

604514

32

Snowthrower Chain/Bolt

644112

33

Right Side Extension

724292

34

Left Side Extension

724293

35

Extension Brace

732909

36

Sprocket Coupler

418425

37

Sprocket Coupler

603746

38

Chain Coupler

388300

39

Lever Guide

732593

40

Push Rod Thumb Button

821675

41

Thumb Release Handle Grip

833540

42

512 Snowthrower Blade

725261

-

Carriage Bolt

247130

-

Whiz Nut

253035

43

Hex Bolt

243810

44

Washer

257080

45

Lock Nut

253970

46

Gear Box

831876

47

Square Key

281586

48

Woodruff Key

281833

49

Snowthrower Hydraulic Lift Bracket

645105

50

Spout Pivot Spacer

903215

51

Retainer Washer

774015

52

Hex Bolt

243205

53

Whiz Nut

253035

54

External Retainer

263490

55

Carriage Bolt

247130

56

Washer

257062

57

Cotter Pin

260652

58

Washer

257040

59

Nut

254450

60

Handle Grip

422160

61

Washer

257030

62

Hex Bolt (Shear)

243052

63

Flanged Whiz Bolt

253203

64

512 Extension

723367

65

Whiz Bolt

253243

66

Whiz Nut

253043

67

Hex Bolt

243030

68

Hex Bolt

243038

69

Hex Bolt

243040

70

Truss Whiz Bolt

253176

71

Whiz Nut

253025

72

Nylon Insert Nut

253440

73

Hair Pin

260523

74

Hex Bolt

243330

75

Hex Bolt

243335

76

Rocker Arm Extension

644706

77

Rear Lift Chain

820323

78

Clevis Pin

261339

79

Cotter Pin

260648

80

Hex Flanged Whiz Bolt

253192

81

Whiz Nut

253066

80

Stop

729962
