Genuine OEM Grasshopper Lawn Mower Parts

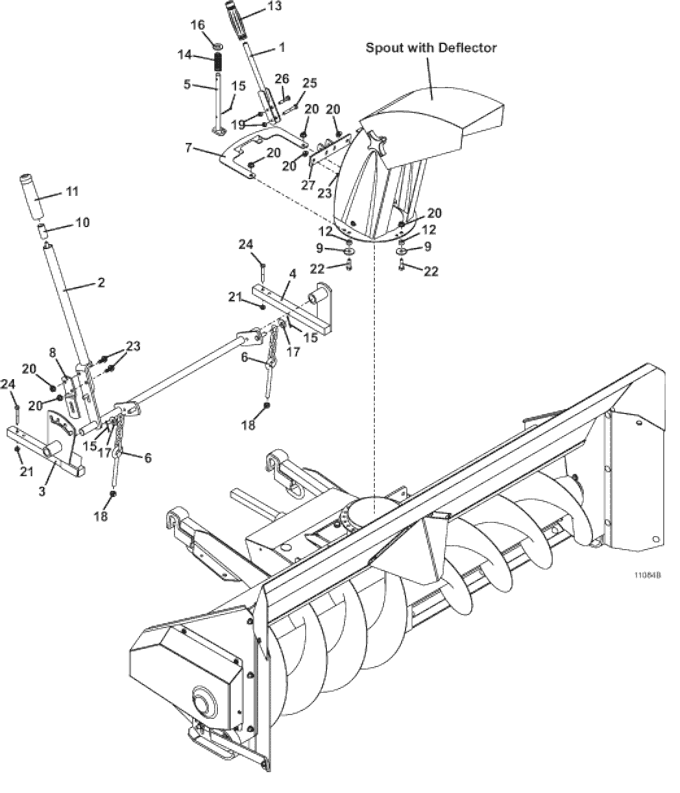

Genuine OEM Grasshopper® Mower Parts Diagrams

Manual Spout Rotation & Manual Lift

2012 - Present

Snowthrower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Spout Handle

643408

2

Thumb Release Lift

643523

3

Lever Mount

643567

4

Left Lift Mount

643570

5

Spout Lock Rod w/a

643834

6

Snowthrower Chain/Bolt

644112

7

Stop

729962

8

Lever Guide

732593

9

Retainer Washer

774015

10

Push Rod Thumb Button

821675

11

Thumb Release Handle Grip

833540

12

Spout Pivot Spacer

903215

13

Handle Grip

422160

14

Compression Spring

283320

15

Cotter Pin

260652

16

Washer

257062

17

Washer

257040

18

Nut

254450

19

Nylon Insert Nut

253440

20

Whiz Nut

253035

21

Whiz Nut

253025

22

Hex Bolt

243205

23

Hex Flanged Whiz Bolt

253192

24

Hex Bolt

243040

25

Hex Bolt

243038

26

Hex Bolt

243030

27

Manual Spout Handle Bracket

645099
