Genuine OEM Grasshopper® Mower Parts Diagrams

2012 to Present Rocker Switch Control Box & Wiring Diagram for Hydraulic Bi-Directional Manual Lift Dozer Blade

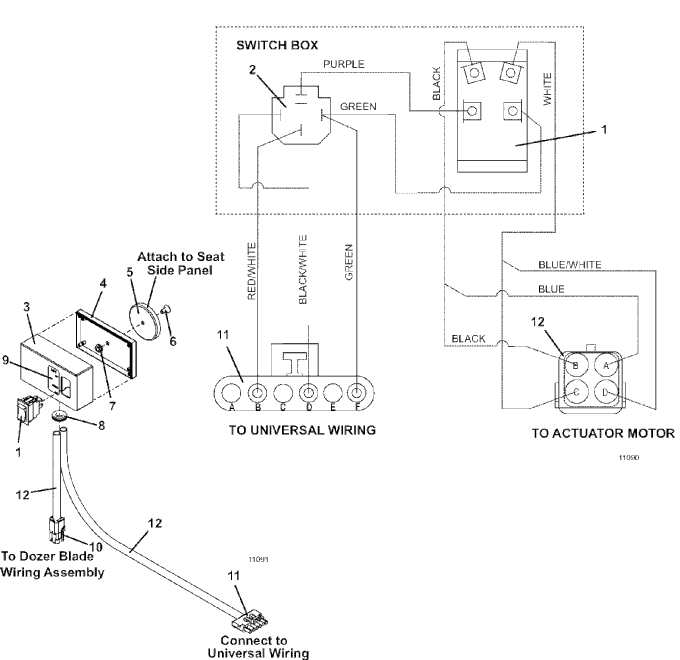

2012 to Present Rocker Switch Control Box & Wiring Diagram
Click On The Part Number For Details

Item #

Description

Part Number

1

2 Post 2 Position Rocker Switch

184177

2

12 V DC Relay

184272

3

Rocker Switch Box

833515

4

Switch Box Cover

833524

5

Round Base Magnet

102505

6

Truss Whiz Bolt

253170

7

Whiz Nut

253025

8

Grommet

424216

9

Lift Rocker Switch Decal

162199

10

4-Way Male Connector

184977

11

6-Way Female Waterproof Connector

184969

12

Flex Guard Loom

422275

-

Tie

423147

13

Rocker Switch Control

605841

Return to Dozer Index Return to Top
