Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Pin Style Mount Snowthrower

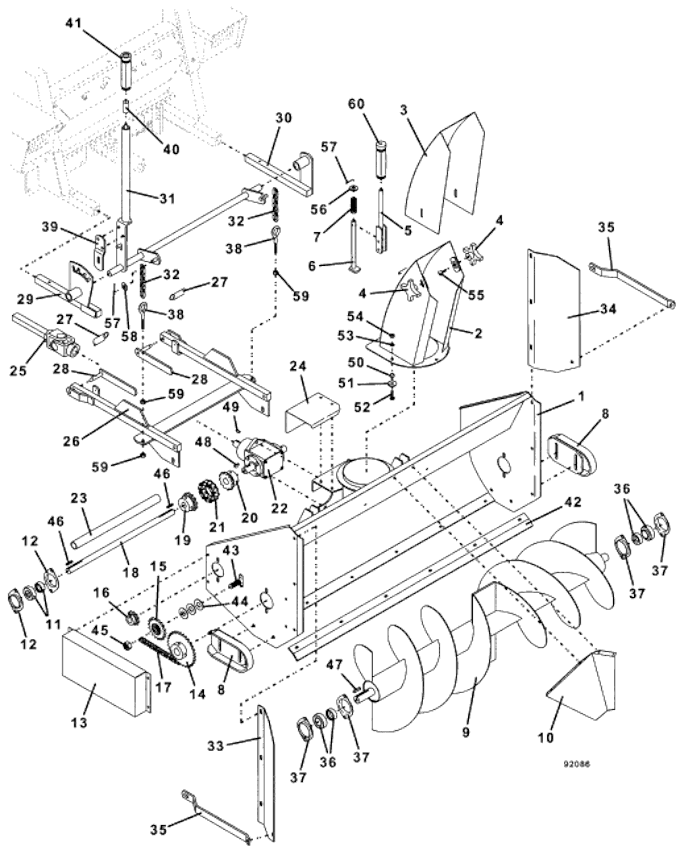

Snowthrower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Snowthrower Housing

643041

2

Upper Spout

643788

3

Spout Deflector

643277

4

Thumb Screw

252860

5

Spout Handle

643408

6

Spout Lock Rod

643728

7

Compression Spring

283320

8

4.0 Skid

643786

9

Snowthrower Auger with 1" Shaft

643089

10

Snow Deflector

721150

11

Ball Bearing with Lock Collar

120062

12

2 Bolt Flangette

124510

13

Snowthrower Chain Shield

722382

14

Sprocket

417549

15

Idler

392995

16

Sprocket

417509

17

#40 Chain

385260

18

Power Shaft

881455

19

Sprocket Coupler

418420

20

Sprocket Coupler

418422

21

Chain Coupler

388300

22

T Gearbox

390220

23

Shaft Shield

822570

24

Shaft Coupling Shield

721069

25

UN Half Shaft

398515

-

Cross & Bearing

121010

-

Yoke

401010

-

Yoke & Shaft

402604

26

Snowthrower Mount Assembly

643616

27

Safety Pin

261848

28

Attaching Pin

643625

29

Lever Mount

643567

30

Left Lift Mount

643570

31

Dozer/Snowthrower Lift Lever Assembly

604514

32

Snowthrower Chain Lift

820320

33

Right Side Extension

724292

34

Left Side Extension

724293

35

Extension Brace

732909

36

Ball Bearing with Lock Collar

120083

37

2 Bolt Flangette

124520

38

Eye Bolt

240058

39

Lever Guide

732593

40

Push Rod Thumb Button

821675

41

Thumb Release Handle Grip

833540

42

Snowthrower Blade

724243

-

Carriage Bolt

247130

-

Whiz Nut

253035

43

Hex Bolt

243810

44

Washer

257080

45

Lock Nut

253970

46

Square Key

281560

47

Square Key

281586

48

Woodruff Key

281833

49

Woodruff Key

281828

50

Spout Pivot Spacer

903215

51

Retainer Washer

774015

52

Hex Bolt

243205

53

Lock Washer

257402

54

Nut

254440

55

Carriage Bolt

247130

56

Washer

257062

57

Cotter Pin

260652

58

Washer

257040

59

Nut

254450

60

Handle Grip

422160
