Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

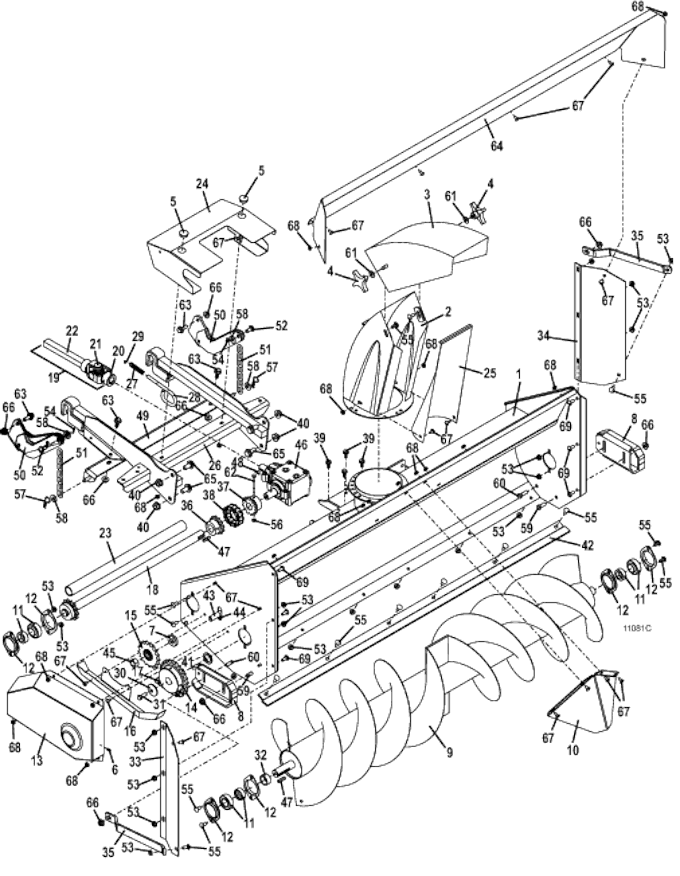

512 • Snowthrower Assembly with Quick-Disconnect Mount

2012 - Present

Snowthrower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Snowthrower Auger Housing(Please Call for Pricing)

693296

2

Spout with Decal

693788

3

Spout Deflector

643277

4

Thumb Screw

252860

5

1 Inch Diameter Plastic Hole Plug

422075

6

Grease Zerk

280776

7

Spacer

884308

8

4.0 Skid

643786

9

Auger

645090

10

Snow Deflector

721150

11

Ball Bearing with Lock Collar

120083

12

2 Bolt Flangette

124520

13

Chain Shield

722883

14

Sprocket

417676

15

Idler

393001

16

Channel

721511

17

Chain

385450

18

Sprocket Shaft

645781

19

UN Half Sleeve

398528

20

Yoke

401010

21

Cross and Bearing

121010

22

Yoke and Shaft

402608

23

512 Shaft Shield

822571

24

Shield

722946

25

Snowthrower Liner

722881

26

Snowthrower Mount Assembly

603739

27

Compression Spring

283285

28

Deck Mount Latch Pin

730433

29

External Retainer

263490

30

Cupped Washer

257041

31

Hex Bolt

243331

32

Spacer

902542

33

Right Side Extension

724292

34

Left Side Extension

724293

35

Extension Brace

732909

36

Sprocket Coupler

418425

37

Sprocket Coupler

603746

38

Chain Coupler

388300

39

Hex Flanged Whix Bolt

253192

40

Whiz Nut

253066

41

Washer

257107

42

512 Snowthrower Blade

725261

43

Hex Bolt

243810

44

Washer

257080

45

Lock Nut

253970

46

Gear Box

831876

47

Square Key

281586

48

Woodruff Key

281833

49

Snowthrower Hydraulic Lift Bracket

645105

50

Rocker Arm Extension

644713

51

Rear Lift Chain

820323

52

Clevis Pin

261339

53

Whiz Nut

253035

54

Cotter Pin

260648

55

Carriage Bolt

247130

56

Nylon Insert Nut

253440

57

Hair Pin

260523

58

Washer

257040

59

Nut

243330

60

Hex Bolt

243335

61

Washer

257030

62

Hex Bolt (Shear)

243052

63

Flanged Whiz Bolt

253203

64

512 Extension

723367

65

Whiz Bolt

253243

66

Whiz Nut

253043

67

Truss Whiz Bolt

253176

68

Whiz Nut

253025

69

Truss Whiz Bolt

253190
