2006 & Older Wiring Diagram for Hydraulic Dozer

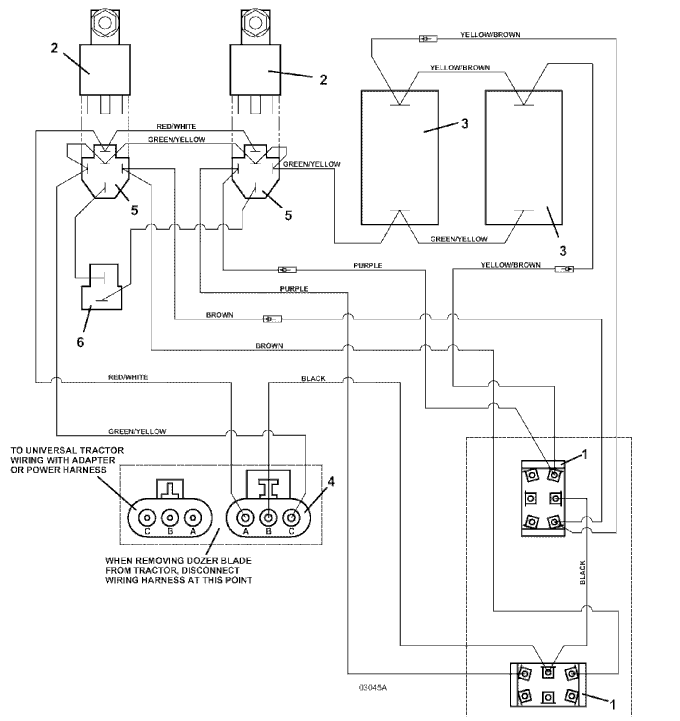

2006 and Older Wiring Diagram
Click On The Part Number For Details

Item #

Description

Part Number

1

Toggle

184083

-

Toggle Switch Boot

425200

-

Keyed Washer

770005

2

Heavy Duty Relay Assembly

604712

3

Hydraulic Dozer Solenoid Valve

144948

4

3-Way Female Waterproof Connector

184974

5

5-Way Female Connector

184926

6

2-Way Female Connector

184917

7

Hydraulic Dozer Wiring Assembly

604914
