Genuine OEM Grasshopper® Mower Parts Diagrams

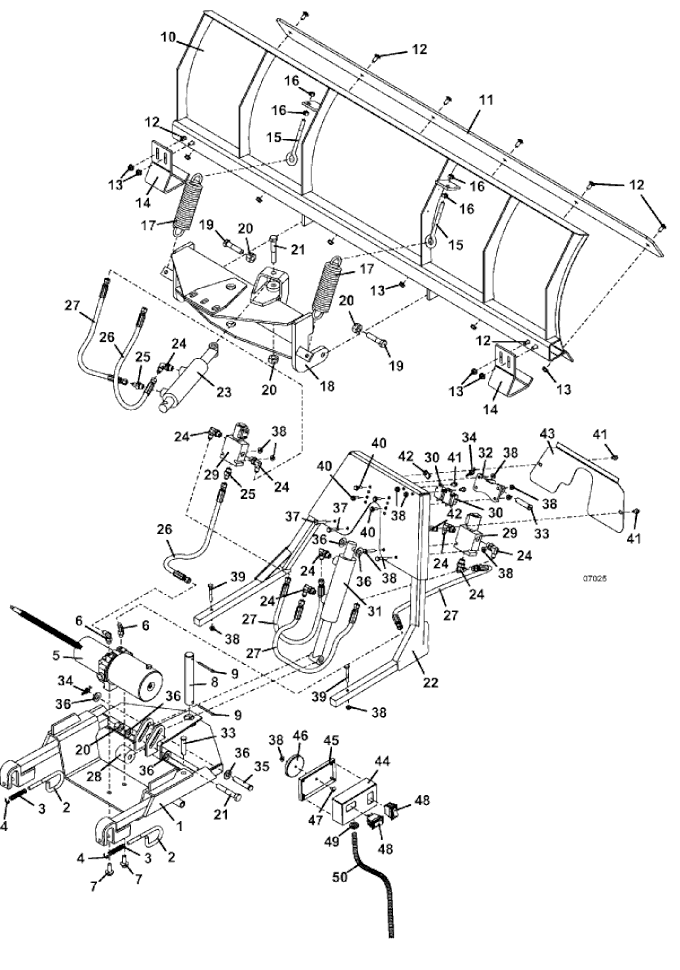

2008 to 2011 Hydraulic Dozer Assembly for 48" & 60" Hydraulic Dozer

2008 to 2011 Hydraulic Dozer Assembly
Click On The Part Number For Details

Item #

Description

Part Number

1

Hydraulic Dozer Mount

644158

2

Deck Mount Latch Pin

730433

3

Compression Spring

283285

4

External Retainer

263490

5

Horizontal Hydraulic Pump Assembly

604428

6

Adapter O-Ring

360049

7

Flanged Whiz Bolt

253203

8

Pivot Pin

882128

9

Cotter Pin

260694

10

48" Moldboard

643536

10

60" Moldboard

643731

11

48" Blade

783293

11

60" Blade

783298

12

Carriage Bolt

247130

13

Whiz Nut

253035

14

Dozer Skid

733205

15

Eye Bolt

240068

16

Nut

254450

17

Extension Spring

283988

18

Hydraulic Dozer Pivot Mount

644549

19

Hex Bolt

243570

20

Lock Nut

253930

21

Hex Bolt

243600

22

Hydraulic Cylinder Attaching Mount

644048

23

Hydraulic Cylinder

290016

24

Adapter O-Ring

360048

25

Adapter O-Ring

360052

26

Hose Assembly

424307

27

Hose Assembly

424308

28

Cylinder Stop

902215

29

Hydraulic Dozer Solenoid Valve

144948

30

Heavy Duty Relay Assembly

604712

31

Hydraulic Cylinder

290015

32

Upper Cylinder Mount

644154

33

Clevis Pin

261430

34

Cotter Ring

260612

35

Clevis Pin

261434

36

Washer

257062

37

Hex Bolt

243038

38

Whiz Nut

253025

39

Hex Bolt

243040

40

Hex Whiz Bolt

253175

41

Hex Whiz Bolt

253173

42

Speed Nut

254431

43

Hydraulic Dozer Shield

722397

44

Dual Rocker Switch Box

833516

45

Switch Box Cover

833524

46

Round Base Magnet

102505

47

Truss Whiz Bolt

253170

48

2 Post 2 Position Rocker Switch

184177

49

Grommet

424230

50

Flex Guard Loom

422280

-

Hydraulic Dozer Wiring Assembly

605853
