Genuine OEM Grasshopper® Mower Parts Diagrams

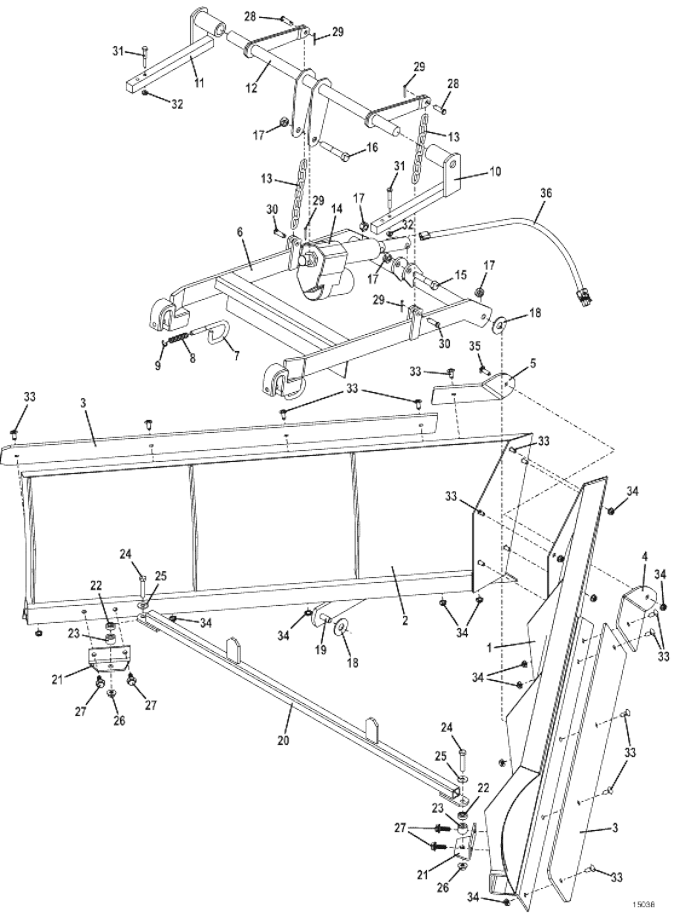

Electric Lift V-Dozer Assembly

Electric Lift V-Dozer Assembly
Click On The Part Number For Details

Item #

Description

Part Number

1

V-Dozer Right

644820

2

V-Dozer Left

644821

3

V-Dozer Blade

783289

4

V-Dozer Nose Right Plate

726223

5

V-Dozer Nose Left Plate

726224

6

Electric V-Dozer Mount Assembly

603303

7

Deck Mount Latch Pin

730433

8

Compression Spring

283285

9

External Retainer

263490

10

Right Electric Lift Mount

644560

11

Left Electric Lift Mount

644561

12

Electric Dozer Lift W/A

644212

13

Rear Chain Lift

820323

14

Actuator

180023

15

Hex Bolt

243591

16

Hex Bolt

243600

17

Lock nut

253930

18

Washer

257080

19

Hex Bolt

243570

20

Rear Brace

644103

21

V-Dozer Mount Bracket

725011

22

Coupling Spacer

902318

23

Drive Spacer

902328

24

Hex Bolt

243347

25

Washer

257040

26

Whiz Nut

253043

27

Whiz Bolt

253202

28

Clevis Pin

261340

29

Cotter Pin

260652

30

Clevis Pin

261346

31

Hex Bolt

243040

32

Whiz Nut

253025

33

Carriage Bolt

247130

34

Whiz Nut

253035

35

Carriage Bolt

247135

36

Joystick Wiring Assembly

605975
