Genuine OEM Grasshopper® Mower Parts Diagrams

Dozer Blade with Pin Style Mount

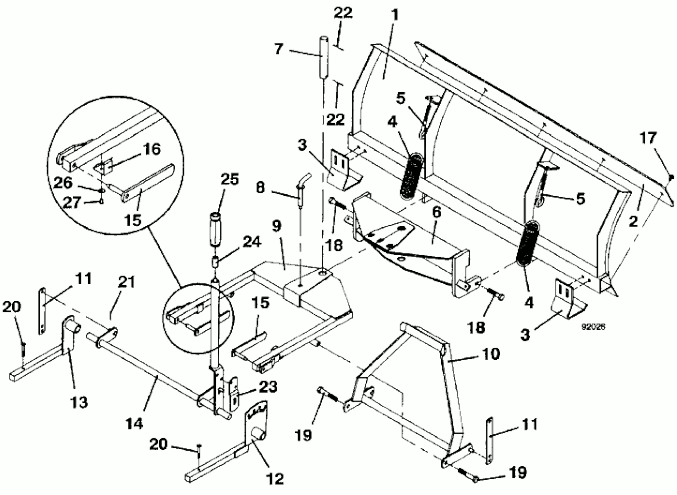

Pin Dozer Diagram
Click On The Part Number For Details

Item #

Description

Part Number

1

Moldboard - 48 Inch

643536

-

Moldboard - 60 Inch

643731

2

Blade - 48 Inch

783293

-

Blade - 60 Inch

783298

3

Dozer Skid

733205

4

Extension Spring

283988

5

Eye Bolt

240068

6

Dozer Pivot Mount

643548

7

Pivot Pin

882128

8

Blade Angle Lock Pin

643626

9

Dozer Mount

643547

10

Foot Lift

643524

11

Linkage Strap

782555

12

Lever Mount

643567

13

Left Lift Mount

643570

14

Lift Lever Assembly

604514

15

Attaching Pin

643625

16

Attaching Pin Clip

280390

17

Cariage Bolt

247130

18

Hex Bolt

243585

19

Hex Bolt

243600

20

Hex Bolt

243040

21

Cotter Pin

260652

22

Cotter Pin

260690

23

Guide

732593

24

Thumb Button Push Rod

821675

25

Handle Grip - Thumb Release

833540

26

Pin Clip Washer

770025

27

Drive Screw

262644
