Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

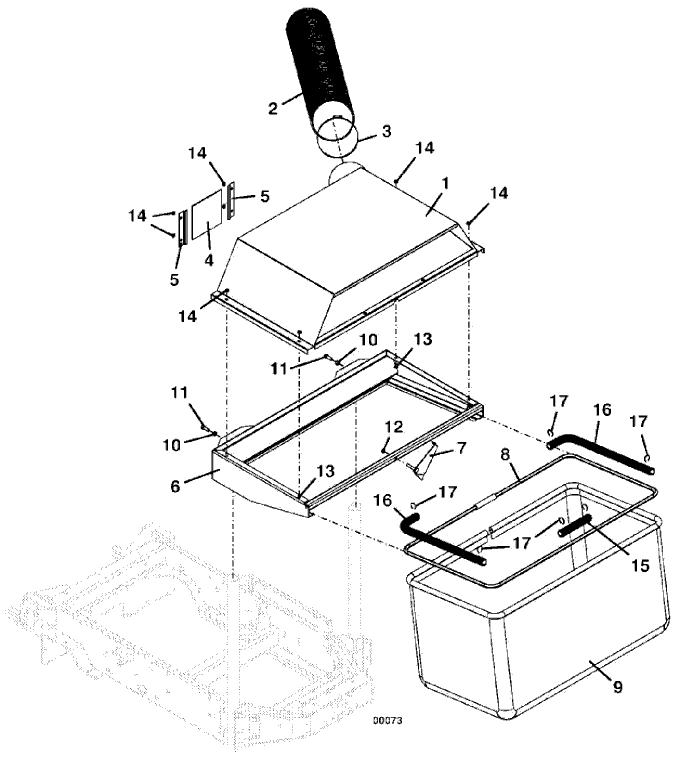

Model 8 Grasscatcher Collector Assembly

Model 8 Single Bag (Formerly Model 7)

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Grass Catcher Cover

643240

2

57" Flex Hose

424408

3

6" Hose Clamp

280345

4

Inspection Window

423505

5

Window Clip

720145

6

Bag Mount Frame

643372

7

Bag Latch

643510

8

Bag Rod

643718

9

Grasscatcher Bag Kit(includes items 9,15,16, &17)

603390

10

Nut

254450

11

Hex Bolt

243330

12

Nylon Insert Nut

253450

13

Truss Whiz Bolt

253176

14

Whiz Nut

253025

15

Bag Latch Wear Strip

822532

16

Vac Bag Wear Strip

822542

17

External Retainer Clip

263532

18

Catcher Without Mount - Model 7 (Not Pictured)

643240
