2012 to Present Joystick Control & Wiring Diagram for Hydraulic Dozer

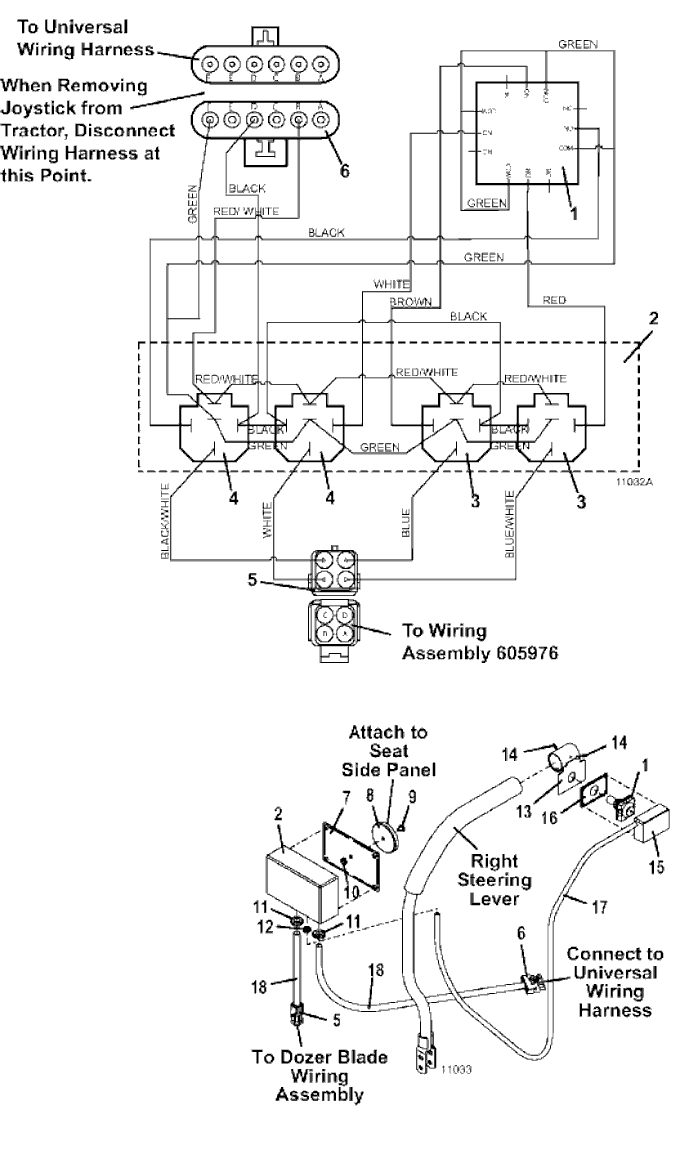

2012 to Present Joystick Control and Wiring Diagram
Click On The Part Number For Details

Item #

Description

Part Number

1

Joystick

183945

2

Dual Cable Relay Box

833530

3

Heavy Duty Relay Assembly

604712

4

12V DC Relay

184272

5

4-Way Male Connector

184977

6

6-Way Female Waterproof Connector

184969

7

Magnetic Mount Relay Box Cover

833523

8

Round Base Magnet

102505

9

Truss Whiz Bolt

253170

10

Whiz Nut

253025

11

Grommet

424216

12

Gommet

424229

13

Joystick Mount

645567

14

Set Screw

259290

15

Joystick Switch Box

833514

16

Joystick Box Cover

833526

17

Flex Guard Loom

422272

18

Flex Guard Loom

422275

-

Releaseable Wire Tie

423149

19

Joystick Relay Box Wiring Assembly

605985

Return to Dozer Index Return to Top
