Genuine OEM Grasshopper® Mower Parts Diagrams

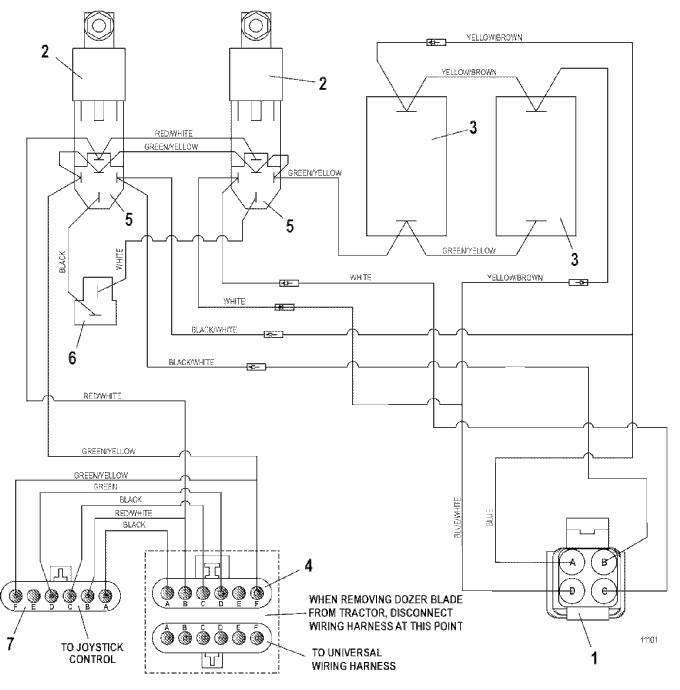

2012 to Present Wiring Diagram for Hydraulic Dozer

2012 to Present Wiring Diagram
Click On The Part Number For Details

Item #

Description

Part Number

1

4-Way Female Connector

184976

2

Heavy Duty Relay Assembly

604712

3

Hydraulic Dozer Solenoid Valve

144948

4

6-Way Female Waterproof Connector

184969

5

5-Way Female Connector

184926

6

2-Way Female Connector

184917

7

Weather Pack Connector

184968

8

Hydraulic Dozer Joystick Wire Assembly

605976

Return to Dozer Index Return to Top
