Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

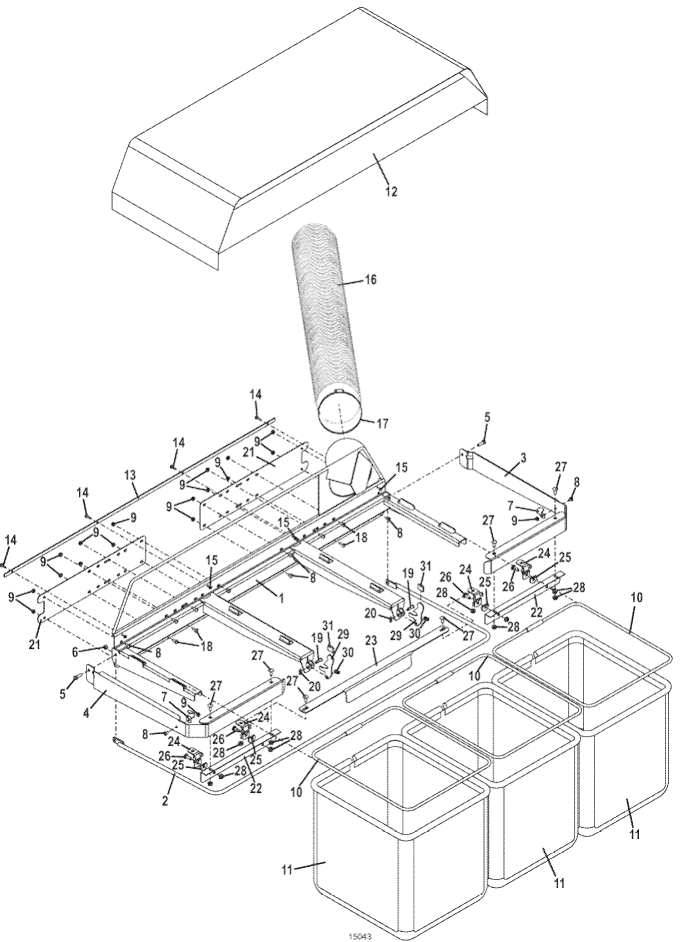

Model 12F Grasscatcher Collector Assembly

Model 12F Triple Bag (504199)

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

12F 3 Bag Frame

645325

2

3 Bag Top Hinge

644709

3

Right Cloth Top Shield

754132

4

Left Cloth Top Shield

754133

5

Hex Bolt

243205

6

Nylon Insert Nut

253450

7

Conduit Clip

180630

8

Truss Whiz Bolt

253176

9

Whiz Nut

253025

10

Bag Rod

645723

11

Black Hard Bottom Vac Bag

420019

12

Black 3 Bag Fabric Catcher Top

420037

13

3 Bag Cover Hold Down Strap

782345

14

Hex Whiz Bolt

253167

15

Whiz Nut

253020

16

57" Flex Hose

424408

17

6" Hose Clamp

280345

18

Truss Whiz Bolt

253177

19

Clevis Pin

261284

20

Cotter Ring

260606

21

Channel Support Plate

773090

22

Right Cloth Top Shielded Half

754060

23

Center Bag Stop

754166

24

Clamp Rod

766014

25

Clamp Rod Spacer

901312

26

Carriage Bolt

247135

27

Carriage Bolt

247130

28

Whiz Nut

253035

29

Catcher Top Latch

774004

30

Torsion Spring

284407

31

Clutch Bracket Cover

422087

32

12F Front Mount/M1 Collector

504199

Return to Frontmount Hopper Index Return to Top
