Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

412 • Snowthrower Assembly with Quick-Disconnect Mount

2009 - 2011

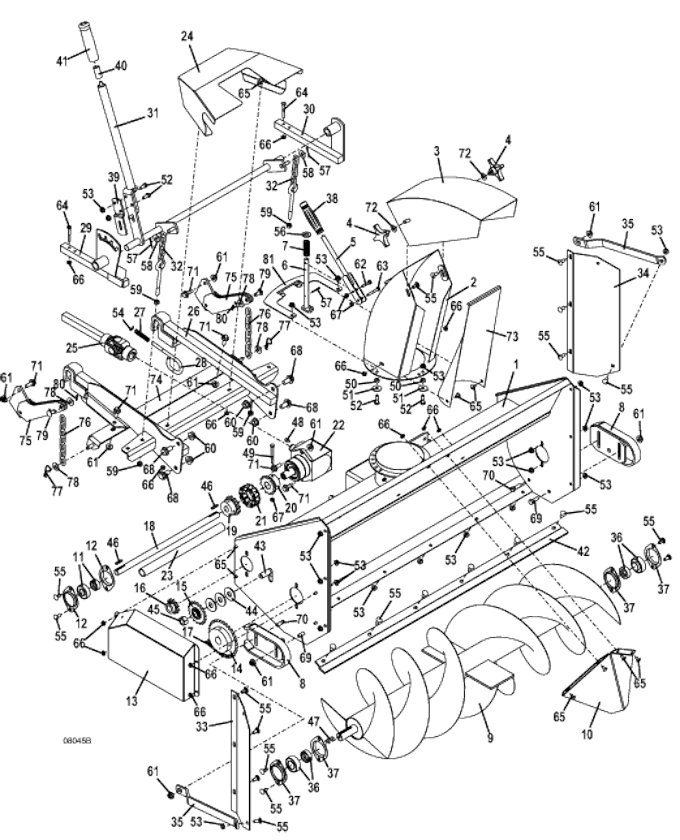

Snowthrower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Snowthrower Auger Housing with Decal

693291

2

Spout with Decal

693788

3

Spout Deflector

643277

4

Thumb Screw

252860

5

Spout Handle

643408

6

Spout Lock Rod w/a

643834

7

Compression Spring

283320

8

4.0 Skid

643786

9

Snowthrower Auger with 1" Shaft

643089

10

Snow Deflector

721150

11

Ball Bearing with Lock Collar

120062

12

2 Bolt Flangette

124510

13

Chain Shield

722886

14

Sprocket

417549

15

Idler

392995

16

Sprocket

417509

17

Chain

385258

18

Sprocket Shaft

645780

19

Sprocket Coupler

418420

20

Sprocket Coupler

603746

21

Chain Coupler

388300

22

Gearbox

831874

23

Shaft Shield

822572

24

Snowthrower Shield

722887

25

UN Half Shaft

398528

-

Cross & Bearing

121010

-

Yoke

401010

-

Yoke & Shaft

402608

26

Quick-Disconnect Snowthrower Mount Assembly

603739

27

Compression Spring

283285

28

Deck Mount Latch Pin

730433

29

Lever Mount

643567

30

Left Lift Mount

643570

31

Dozer/Snowthrower Lift Lever Assembly

604514

32

Snowthrower Chain/Bolt

644112

33

Right Side Extension

724292

34

Left Side Extension

724293

35

Extension Brace

732909

36

Ball Bearing with Lock Collar

120083

37

2 Bolt Flangette

124520

38

Handle Grip

422160

39

Lever Guide

732593

40

Push Rod Thumb Button

821675

41

Thumb Release Handle Grip

833540

42

Snowthrower Blade

724243

-

Carriage Bolt

247130

-

Whiz Nut

253035

43

Hex Bolt

243810

44

Washer

257080

45

Lock Nut

253970

46

Square Key

281560

47

Square Key

281586

48

Woodruff Key

281833

49

Hex Bolt (Shear)

243052

50

Spout Pivot Spacer

903215

51

Retainer Washer

774015

52

Hex Bolt

243205

53

Whiz Nut

253035

54

External Retainer

263490

55

Carriage Bolt

247130

56

Washer

257062

57

Cotter Pin

260652

58

Washer

257040

59

Nut

254450

60

Whiz Nut

253066

61

Whiz Nut

253043

62

Hex Bolt

243030

63

Hex Bolt

243038

64

Hex Bolt

243040

65

Whiz Truss Bolt

253176

66

Whiz Nut

253025

67

Nylon Insert Nut

253440

68

Hex Bolt

253243

69

Hex Bolt

243330

70

Hex Bolt

243335

71

Flanged Whiz Bolt

253203

72

Washer

257030

73

Snowthrower Liner

722881

74

Snowthrower Hydaulic Lift Bracket

645105

75

Rocker Arm Extension

644706

76

Rear Lift Chain

820323

77

Hair Pin

260523

78

Washer

257040

79

Clevis Pin

261339

80

Cotter Pin

260648

81

Stop

729962
