Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

3344 / 3348 Decks • Right Angle Gearbox Assembly

2005

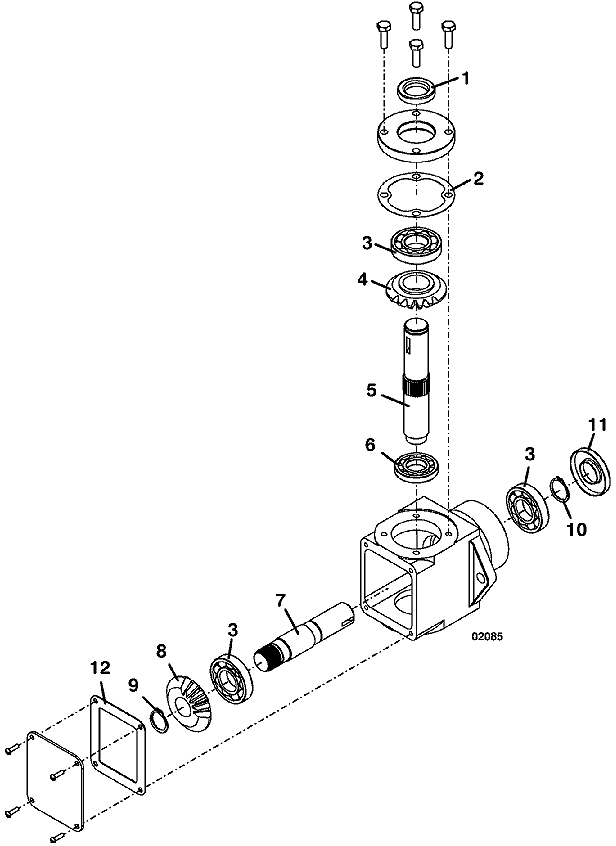

Right Angle Gearbox

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125336

2

Gearbox Cap Gasket

420201

3

Ball Bearing

120071

4

.995 8 Pitch Bevel Gear

392501

5

1.000 Shaft

393517

6

Ball Bearing

120065

7

.875 Shaft

393513

8

.865 8 Pitch Bevel Gear

392500/a>

9

External Retainer

263530

10

External Retainer

263540

11

Seal

125339

12

Gearbox Cover Gasket

420200

return to 3344 / 3348 index return to top of page
