Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

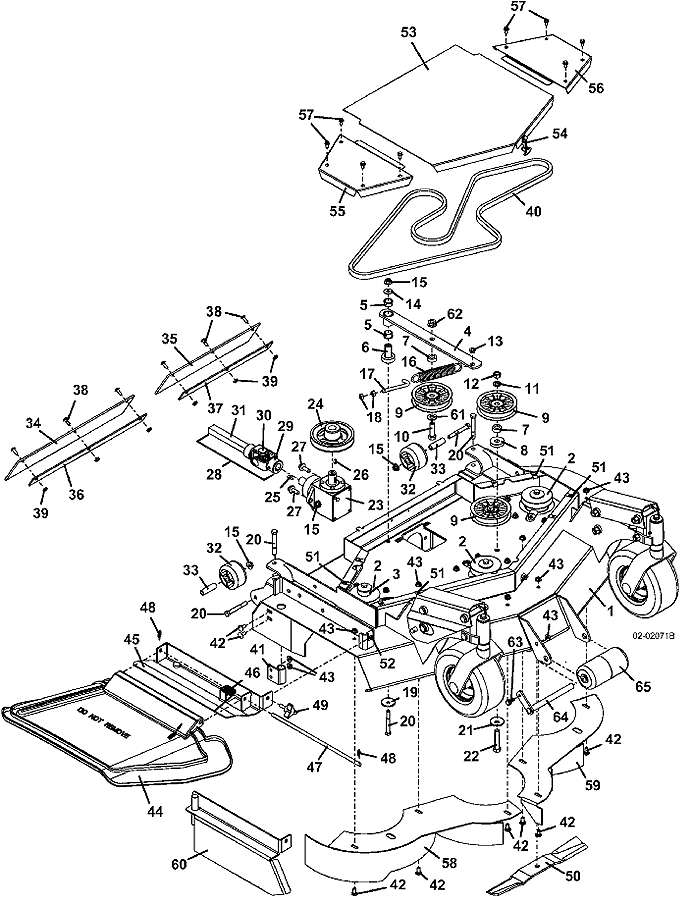

3344 Deck • Mower Assembly

2006

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3344 Deck Weldment

644166

2

Sheave

414675

3

Spacer

282630

4

3344 F/A Idler Arm

824480

5

Oilite Bearning

121756

6

Pedestal Bearing

121650

7

Spacer

902313

8

Washer

883804

9

Idler

393225

10

Hex Bolt

243575

11

Lock Washer

257432

12

Nut

254470

13

Nylon Bearing

422520

14

Washer

257040

15

Whiz Nut

253043

16

Extension Spring

283848

17

Idler Adjustment J Bolt

730391

18

Nut

254450

19

Cupped Washer

257041

20

Hex Bolt

243365

21

Washer

257059

22

Hex Bolt

243590

23

Counter Clockwise Right Angle Gearbox

390021

24

Sheave

415874

25

Woodruff Key

281828

26

Woodruff Key

281833

27

Flange Whiz Bolt

253203

28

UN Half Shaft

398525

29

Yoke

401010

30

Cross & Bearing

121010

31

Yoke & Shaft

402605

32

Roller

426122

33

Roller Mount Spacer

902284

34

3344 right Deck Flap / Debris Shield

424173

35

3344 left Deck Flap

424174

36

3344 right Deflector Strap

774227

37

3344 left Deflector Strap

774228

38

Truss Whiz Bolt

253177

39

Whiz Nut

253025

40

Belt

383012

41

Vac Housing Pivot Mount

643632

42

Carriage Bolt

247130

43

Whiz Nut

253035

44

Flex Discharge Shield

422042

45

33 series Discharge Shield Mount

644567

46

Torsion Spring

284406

47

Flex Discharge Shield Pin

780650

48

Cotter Ring

260608

49

3-Prong Head Deck Stud (Knob)

252821

50

15" High Lift Notch Blade

320234

-

15" Medium Lift Blade

320231

-

15" Contour Blade

320233

51

Speed Nut

254431

52

Speed Nut

254448

53

3344 Center Shield Assembly

604747

54

Rubber Draw Latch

281300

55

3344 right Belt Shield

722498

56

3344 left Belt Shield

722499

57

Hex Whiz Bolt

253173

58

3344 right Mulch Plate

644605

59

3344 left Mulch Plate

644606

60

3344/3348 Mulch End Cap

644175

61

Washer

257062

62

Flange Spiral Lock Nut

253067

63

Hex Flange Whiz Bolt

253192

64

Roller Lock Pin

644512

65

Center 2 Piece Roller Assembly

603725

66

Decal Set for 33 Series Deck

603279
