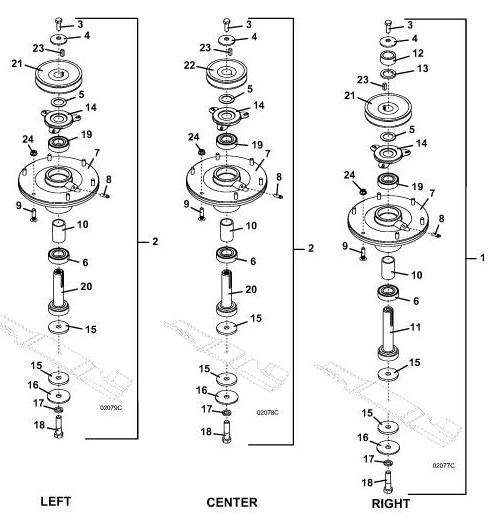

Item # |
Description |
Part Number |
| 1 |
SPINDLE ASSY DECK - RT 3348 (does not include Item 25) |
623778 |
| 2 |
SPINDLE ASSY DECK - LT 3348 (does not include Item 25) |
623779 |
| 3 |
HEX BOLT |
243331 |
| 4 |
WASHER - CUPPED |
257041 |
| 5 |
WASHER |
257104 |
| 6 |
BEARING - BALL SINGLE SEAL |
110082 |
| 7 |
SPINDLE HOUSING - MACHINED 4.0 |
320545 |
| 8 |
FITTING GREASE |
280745 |
| 9 |
BOLT - ROUND HEAD RIBBED NECK |
247141 |
| 10 |
SPACER - BEARING-SHALLOW SPACER |
903645 |
| 11 |
SPINDLE SHAFT ASSY |
604768 |
| 12 |
SPACER |
282630 |
| 13 |
WASHER |
257107 |
| 14 |
BEARING SHIELD |
721167 |
| 15 |
WASHER - FIBER |
421200 |
| 16 |
WASHER |
257061 |
| 17 |
WASHER - LOCK |
257432 |
| 18 |
HEX BOLT |
243581 |
| 19 |
BEARING - BALL DOUBLE SEAL |
110080 |
| 20 |
SPINDLE - ASSEMBLY 25MM 4.75 |
604764 |
| 21 |
SHEAVE |
414696 |
| 22 |
SHEAVE |
414685 |
| 23 |
KEY SQUARE |
281580 |
| 24 |
NUT WHIZ |
253035 |
