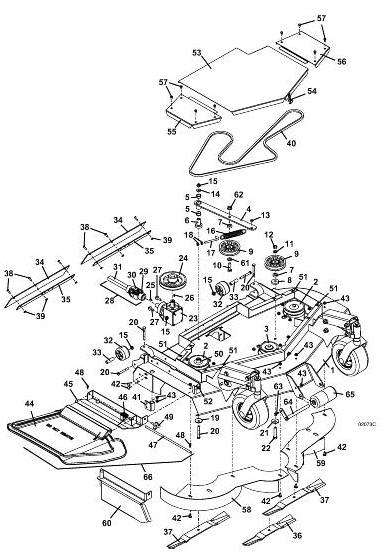

Item # |
Description |
Part Number |
| 1 |
DECK - 3348 |
643994 |
| 2 |
SHEAVE |
414696 |
| 3 |
SHEAVE |
414685 |
| 4 |
IDLER ARM - 3348 F/A |
824481 |
| 5 |
BEARING - OILITE |
121756 |
| 6 |
BEARING PEDESTAL |
121650 |
| 7 |
SPACER |
902313 |
| 8 |
WASHER |
883804 |
| 9 |
IDLER |
393225 |
| 10 |
HEX BOLT |
243575 |
| 11 |
WASHER - LOCK |
257432 |
| 12 |
NUT |
254470 |
| 13 |
NYLON BEARING |
422520 |
| 14 |
WASHER |
257040 |
| 15 |
NUT WHIZ |
253043 |
| 16 |
SPRING - EXTENSION |
283848 |
| 17 |
J BOLT - IDLER ADJUSTMENT |
730391 |
| 18 |
NUT |
254450 |
| 19 |
WASHER - CUPPED |
257041 |
| 20 |
HEX BOLT |
243365 |
| 21 |
WASHER |
257059 |
| 22 |
HEX BOLT |
243590 |
| 23 |
GEARBOX RT ANGLE CCW |
390021 |
| 24 |
SHEAVE |
415885 |
| 25 |
KEY WOODRUFF |
281833 |
| 26 |
KEY WOODRUFF |
281828 |
| 27 |
BOLT WHIZ FLANGE |
253203 |
| 28 |
UN HALF SHAFT |
398525 |
| 29 |
YOKE |
401010 |
| 30 |
CROSS & BEARING |
121010 |
| 31 |
YOKE & SHAFT |
402605 |
| 32 |
ROLLER |
426122 |
| 33 |
SPACER - ROLLER MOUNT |
902284 |
| 34 |
FLAP DECK - 9648 RIGHT |
424200 |
| 35 |
STRAP - DEFLECTOR RT |
774219 |
| 36 |
BLADE -15 HI-LIFT NOTCH |
320234 |
| |
BLADE -15 MED LIFT |
320231 |
| |
BLADE -15 CONTOUR |
320233 |
| |
BLADE -15 HI-LOW MULCH |
320235 |
| 37 |
BLADE -15 HI-LIFT NOTCH |
320239 |
| |
BLADE -18MED LIFT |
320236 |
| |
BLADE -18 CONTOUR |
320238 |
| |
BLADE -18 HI-LOW MULCH |
320240 |
| 38 |
BOLT WHIZ TRUSS |
253177 |
| 39 |
NUT WHIZ |
253025 |
| 40 |
BELT |
383011 |
| 41 |
MOUNT - PIVOT VAC HOUSING |
643632 |
| 42 |
CARRIAGE BOLT |
247130 |
| 43 |
NUT WHIZ |
253035 |
| 44 |
SHIELD - FLEX DISCHARGE |
422042 |
| 45 |
MOUNT - DISCHARGE SHIELD 33S |
644567 |
| 46 |
SPRING - TORSION |
284406 |
| 47 |
PIN - FLEX DISCHARGE SHIELD |
780650 |
| 48 |
RING COTTER |
260608 |
| 49 |
STUD - 3 PRONG HD - DECK |
252821 |
| 50 |
SPACER |
282630 |
| 51 |
NUT |
254431 |
| 52 |
NUT SPEED ZP |
254448 |
| 53 |
SHIELD ASSY6 - 3348 CENTER |
604748 |
| 54 |
LATCH RUBBER DRAW |
281300 |
| 55 |
SHIELD - BELT L48 RT |
722364 |
| 56 |
SHIELD - BELT - L48 LT |
722389 |
| 57 |
BOLT WHIZ HEX |
253173 |
| 58 |
MULCH PLATE - 3348 RT |
644603 |
| 59 |
MULCH PLATE - 3348 LT |
644604 |
| 60 |
END CAP - MULCH 3344/48 |
644175 |
| 61 |
WASHER |
257062 |
| 62 |
NUT FLANGE SPIRAL LOC |
253067 |
| 63 |
BOLT WHIZ HEX FLANGE |
253192 |
| 64 |
LOCK PIN - ROLLER |
644512 |
| 65 |
ROLLER - CENTER 2 PIECE ASSY |
603725 |
| 66 |
SHIELD - DSCHRG ASSY FLEX 3344/48 |
604318 |
| 67 |
DECAL SET - MOWER SAFETY |
603280 |
