grasshopper

3348
48"

Year Model: 2007

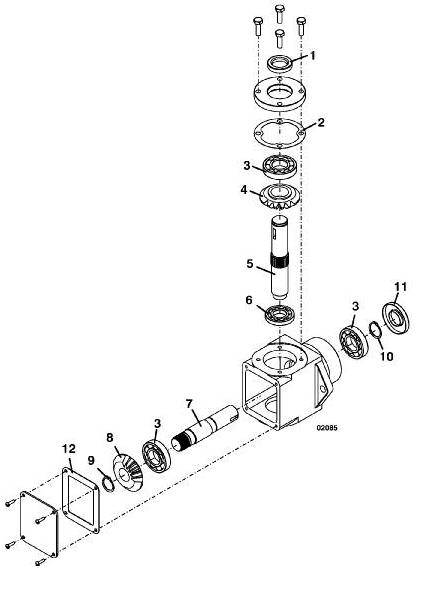

Right Angle Gearbox


Click On The Part Number For Details

Item #

Description

Part Number

1 SEAL 125336
2 GASKET CAP GEARBOX 420201
3 BEARING BALL 120071
4 GEAR BEVEL - 8 PITCH 392501
5 SHAFT 1.000 393517
6 BEARING BALL 120065
7 SHAFT .875 393513
8 GEAR BEVEL - 8 PITCH 392500
9 RETAINER EXTERNAL 263530
10 RETAINER EXTERNAL 263540
11 SEAL 125339
12 GASKET COVER GEARBOX 420200
