grasshopper

3348
48"

Year Model: 2007

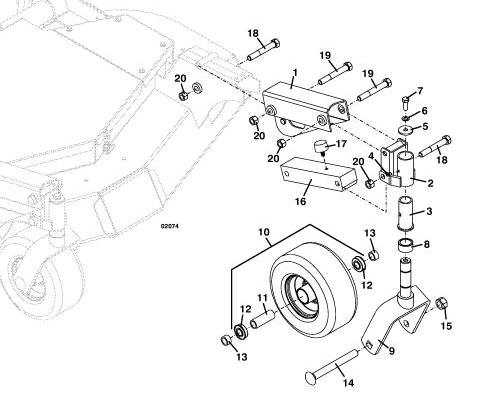

Wheel Lift Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1 LIFT CHANNEL - 33 SERIES RT 644461
  LIFT CHANNEL - 33 SERIES LT 644462
2 FORK MOUNT W/BEARING RT. 603351
  FORK MOUNT W/BEARING LT. 603352
3 BUSHING - FLANGED SINTERED 833260
4 FITTING GREASE 280776
5 WASHER 774014
6 WASHER - LOCK 257412
7 HEX BOLT 243331
8 SPACER 902541
9 FORK - DECK 90 SERIES 604350
  O-RING 425514
10 WHEEL ASSY - 4 - SEMI-PNEU 603971
11 SPACER - DECK WHEEL BRG 902473
12 BEARING - BALL 120050
13 SPACER - AXLE 902415
14 CARRIAGE BOLT 247715
15 NUT LOCK 253970
16 STABILIZER W/BUMPER - DECK 822312
17 RUBBER BUMPER 424053
18 HEX BOLT 243609
19 HEX BOLT 243614
20 NUT LOCK 253930
