Genuine OEM Grasshopper® Mower Parts Diagrams

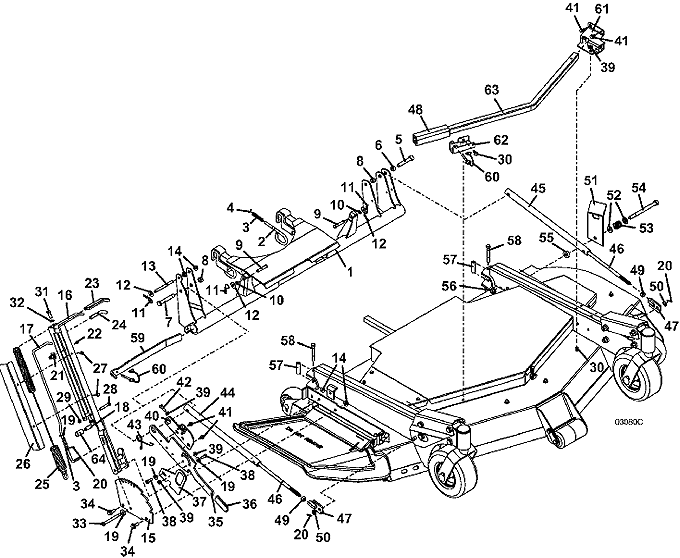

3452 / 3461 Decks • Lift Arm & Linkage Assembly
2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
3452 Lift Arm Assembly |
604547 |
- |
3461 Lift Arm Assembly |
604549 |
2 |
Deck Mount Latch Pin |
730433 |
3 |
Compression Spring |
283285 |
4 |
External Retainer |
263490 |
5 |
Socket Head Screw |
259640 |
6 |
Actuator Stop Spacer |
902282 |
7 |
Hex Bolt |
243609 |
8 |
Lock Nut |
253930 |
9 |
Clevis Pin |
261362 |
10 |
Push-On Retainer |
262950 |
11 |
Hair Pin |
260523 |
12 |
Washer |
257040 |
13 |
Drilled Stud |
830037 |
14 |
Whiz Nut |
253043 |
15 |
3461 Lever Mount |
726036 |
- |
33/34 Series Cutting Height Decal |
162188 |
16 |
3452/3461 Lift Lever |
824578 |
- |
3452/3461 Lift Lever Assembly |
606521 |
17 |
Lever Assist Rod |
730375 |
18 |
Lift Lever Bolt Sleeve |
902273 |
19 |
Washer |
257030 |
20 |
Cotter Pin |
260650 |
21 |
Rod Retainer |
423110 |
22 |
#8 Screw |
252041 |
23 |
Handle Grip |
422155 |
24 |
Handle Grip |
422158 |
25 |
Lift Assist Spring Assembly |
604518 |
26 |
Lever Assist Spring Shield |
722716 |
27 |
Hex Whiz Bolt |
253173 |
28 |
Hex Bolt |
243225 |
29 |
Nylon Insert Nut |
253450 |
30 |
Hex Flange Whiz Bolt |
253192 |
31 |
Hex Bolt |
243330 |
32 |
Lock Washer |
257412 |
33 |
Hex Bolt with Shank |
243380 |
34 |
Flange Whiz Bolt |
253203 |
35 |
33 Series F/A Lift Connecting Arm |
824174 |
36 |
Black Handle Grip |
422153 |
37 |
L48 Latch Connecting Arm |
783063 |
38 |
Shoulder Bolt |
259722 |
39 |
Whiz Nut |
253035 |
40 |
Lift Linkage Adjustment Bracket |
824566 |
41 |
Whiz Bolt |
253189 |
42 |
Hex Bolt |
243205 |
43 |
Torsion Spring |
284423 |
44 |
3452 right Linkage |
644472 |
- |
Lift Linkage Tube - 3452 left / 3461 right |
644547 |
45 |
Lift Linkage Tube - 3452 left / 3461 right |
644547 |
- |
left Lift Linkage Tube - 3461 |
644548 |
46 |
3452 / 3461 Round Head Bolt
(for decks with serial number 5541833 and above)
NOTE: Order this part if your bolt measures 12" |
243667 |
- |
3452 / 3461 Linkage Bolt Assembly
(for decks with serial number 5541832 and below)
NOTE: Order this part if your bolt measures 15¼" |
604552 |
47 |
Lift Rod Bracket |
644068 |
48 |
Foam Grip |
422177 |
49 |
Nut |
254470 |
50 |
Washer |
257063 |
51 |
3452 / 3461 Deck Latch |
729237 |
52 |
Washer |
257067 |
53 |
Compression Spring |
283332 |
54 |
Hex Bolt |
243640 |
55 |
Tilt Latch Spacer |
902292 |
56 |
Spiral Flange Lock Nut |
253067 |
57 |
Roller Mount Spacer |
902284 |
58 |
Hex Bolt |
243365 |
- |
Lock Nut |
253890 |
59 |
Standard Traction Kit Tool |
783068 |
60 |
Linch Pin |
261624 |
61 |
Lift Assist Bar Bracket |
644060 |
62 |
Lift Bar Mount Bracket |
729330 |
63 |
3452 Lift Bar |
944050 |
- |
3461 Lift Bar |
944055 |
64 |
Lift Lever Bolt Outer Sleeve |
942158 |
