Genuine OEM Grasshopper® Mower Parts Diagrams
3452 / 3461 Front Mount Decks

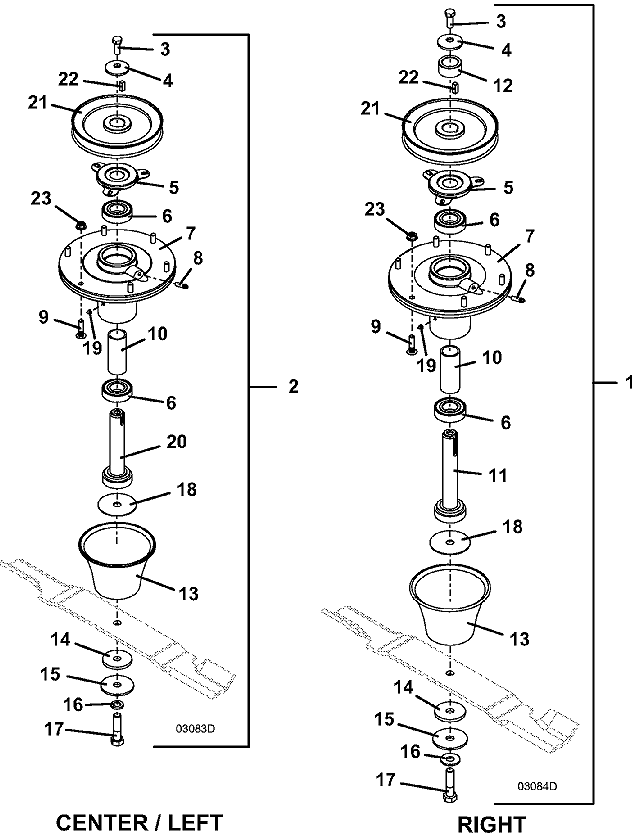

Blade Spindle Assembly
2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
right Spindle Assembly (includes items 3-19) |
623762 |
2 |
left & center Spindle Assembly (includes items 3-10 & 13-19) |
623763 |
3 |
Hex Bolt |
243331 |
4 |
Cupped Washer |
257041 |
5 |
Bearing Shield |
721167 |
6 |
25mm 2 Reg Seal Ball Bearing |
110081 |
7 |
Aluminum Spindle Housing Assembly |
604413 |
8 |
Zerk Grease Fitting |
280745 |
9 |
Ribbed Neck Round Head Bolt |
247141 |
10 |
Deep Spindle Bearing Spacer |
903643 |
11 |
98 Series Spindle Shaft Assembly |
604774 |
12 |
Spacer |
282630 |
13 |
Deflector Cone |
423680 |
14 |
Fiber Washer |
421200 |
15 |
Washer |
257061 |
16 |
Blade Spindle Hardened Washer |
257057 |
17 |
Grade 5 Hex Bolt |
243581 |
18 |
Washer |
772061 |
19 |
Relief Plug |
280705 |
20 |
5.75 Spindle Shaft Assembly |
604775 |
21 |
Sheave |
415892 |
22 |
Square Key |
281580 |
23 |
Whiz Nut |
253035 |
