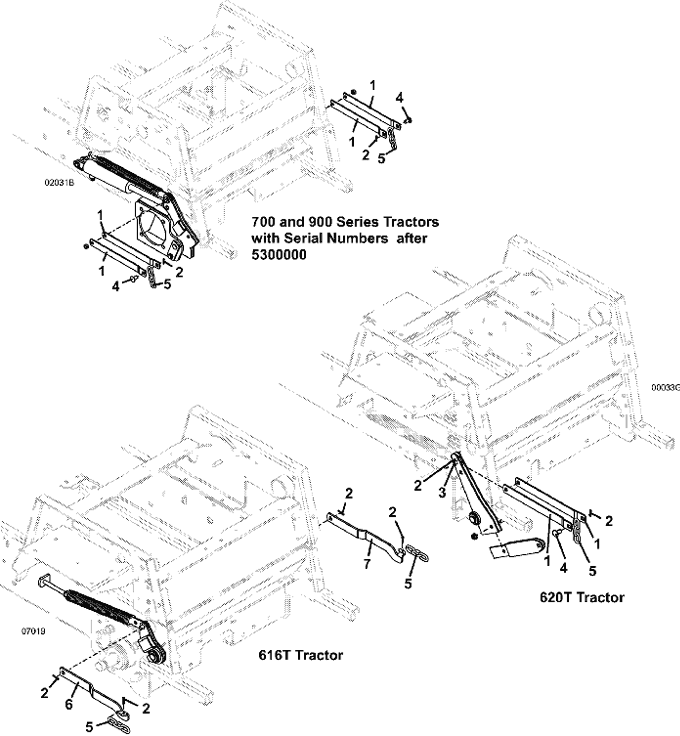

Genuine OEM Grasshopper® Mower Parts Diagrams
3452 / 3461 Front Mount Decks • Traction Kit Adapter
2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
600 series with SL Deck Lift Strap |
732410 |
2 |
Cotter Pin |
260648 |
3 |
Clevis Pin |
261339 |
4 |
Clevis Pin |
261336 |
5 |
Lift Chain with 3 Links |
820317 |
6 |
616T right Lift Strap |
725492 |
7 |
616T left Lift Strap |
725493 |
