Genuine OEM Grasshopper® Mower Parts Diagrams

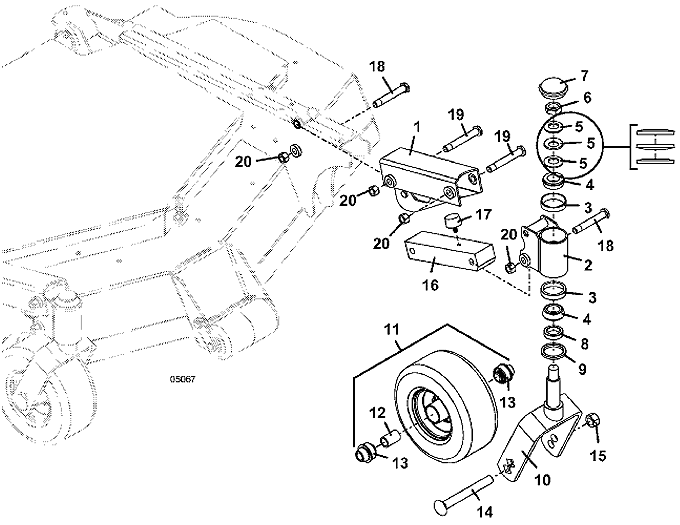

3452 / 3461 Front Mount Decks • Wheel Lift Assembly
2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
33/34 Series Right Lift Channel |
644461 |
- |
33/34 Series Left Lift Channel |
644462 |
2 |
Deck HD Fork Housing |
824982 |
3 |
Bearing Cup |
123522 |
4 |
Taper Bearing |
122522 |
5 |
Spring Washer |
257320 |
6 |
Nylon-Top Jam Lock Nut |
254505 |
7 |
Domed Dust Cap |
481434 |
8 |
Spacer |
282615 |
9 |
Seal |
125855 |
10 |
3452/3461 Fork & Lock Nut Assembly |
604368 |
11 |
Semi-Pneumatic Wheel & Bearing Assembly 9 x 3.5 x 4 |
603973 |
12 |
Center Axle Spacer |
902428 |
13 |
DP Wheel Ball Bearing |
120048 |
14 |
Carriage Bolt |
247715 |
15 |
Lock Nut |
253970 |
16 |
Deck Stabilizer with Bumper |
822312 |
17 |
Rubber Bumper |
424053 |
18 |
Hex Bolt |
243609 |
19 |
Hex Bolt |
243614 |
20 |
Lock Nut |
253930 |
return to 3452 / 3461 index
