Genuine OEM Grasshopper® Mower Parts Diagrams

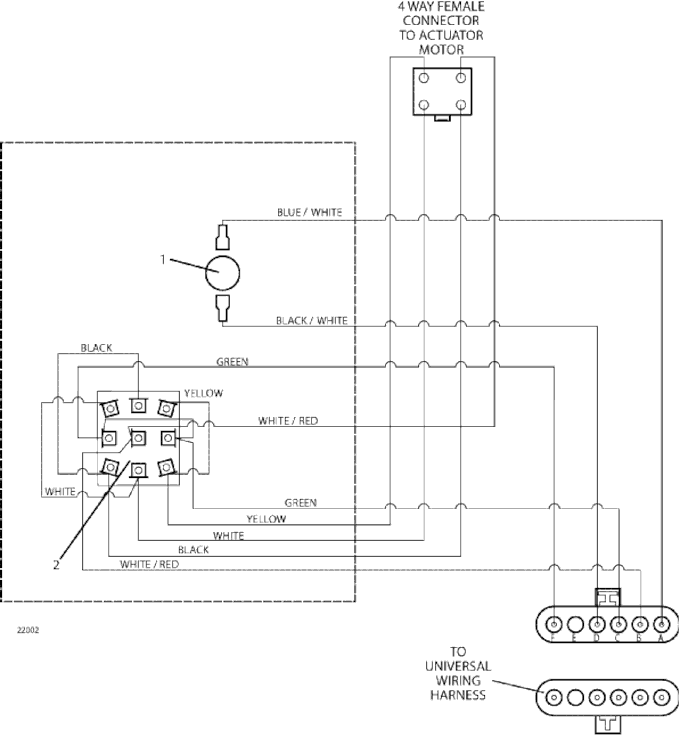

3452/3461 Front Mount Decks • Powerfold Actuator Wiring
2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Snap Mount Plunger SPST NC Switch |
183867 |
2 |
Toggle |
184151 |
- |
Toggle Switch Boot |
425200 |
- |
Keyed Washer |
770005 |
3 |
Wire Assembly - PF E-Brake |
605991 |
