Genuine OEM Grasshopper® Mower Parts Diagrams

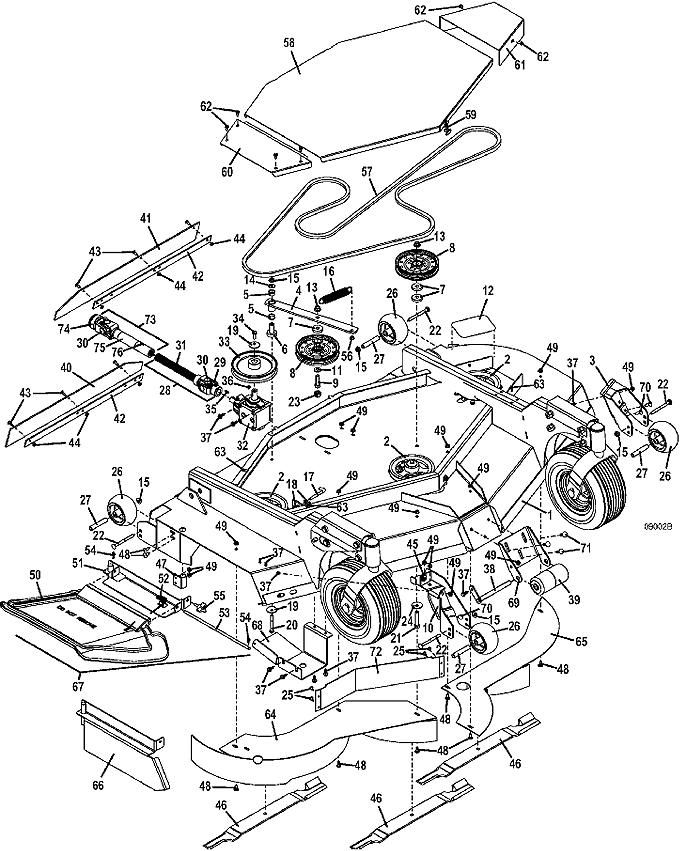

Mower Assembly • 3472 Front Mount Deck
2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
3472 PowerFold Mower Deck |
645167 |
2 |
Sheave |
414745 |
3 |
left Anti-Scalp Roller Mount |
645579 |
4 |
Idler Arm Assembly |
824580 |
5 |
Oilite Bearning |
121756 |
6 |
Pedestal Bearing |
121650 |
7 |
Washer |
883804 |
8 |
Idler |
393250 |
9 |
Hex Bolt |
243575 |
10 |
right 3472 Anti-Scalp Roller Mount |
645576 |
11 |
Lock Washer |
257062 |
12 |
Step Tread |
420904 |
13 |
Flange Spiral Lock Nut |
253067 |
14 |
Washer |
257040 |
15 |
Whiz Nut |
253043 |
16 |
Extension Spring |
283848 |
17 |
Idler Adjustment J Bolt |
730391 |
18 |
Nut |
254450 |
19 |
Cupped Washer |
257041 |
20 |
Hex Bolt |
243365 |
21 |
Hex Bolt |
243355 |
22 |
Carriage Bolt |
247310 |
23 |
Idler Arm Stabilizer Cap |
423670 |
24 |
Washer |
257059 |
25 |
Truss Whiz Bolt |
253176 |
26 |
Anti-Scalp Center Hub Wheel |
484230 |
27 |
Tube Bearing |
942137 |
28 |
ASM 11.0 UN Half Shaft |
398527 |
29 |
Yoke |
401010 |
30 |
Cross & Bearing |
121010 |
31 |
#6 x 11 Yoke & Shaft |
402611 |
32 |
.875 Counter Clockwise C0319 Right Angle Gearbox |
390026 |
- |
.875 Counter Clockwise H0117 Right Angle Gearbox |
390027 |
33 |
Sheave |
415893 |
34 |
Hex Bolt |
243331 |
35 |
Woodruff Key |
281833 |
36 |
Woodruff Key |
281828 |
37 |
Hex Flange Whiz Bolt |
253192 |
38 |
Roller Lock Pin |
644512 |
39 |
Center 2 Piece Roller Assembly |
603725 |
40 |
9772 right Deck Flap |
424213 |
41 |
9772/3472 left Deck Flap |
424214 |
42 |
right Deflector Strap |
774337 |
43 |
Philips Truss Whiz Bolt |
253179 |
44 |
Whiz Nut |
253025 |
45 |
Speed Nut |
254448 |
46 |
25" High Lift Notch Blade |
320253 |
- |
25" Medium Lift Blade |
320250 |
- |
25" Contour Blade |
320252 |
- |
25" Extreme High Lift Notch Blade |
320254 |
- |
25" High-Low Mulch Blade |
320255 |
47 |
Vac Housing Pivot Mount |
643632 |
48 |
Carriage Bolt |
247130 |
49 |
Whiz Nut |
253035 |
50 |
Flex Discharge Shield |
422042 |
51 |
Discharge Shield Mount |
644570 |
52 |
Torsion Spring |
284406 |
53 |
Flex Discharge Shield Pin |
780650 |
54 |
Cotter Ring |
260608 |
55 |
3-Prong Head Deck Stud (Knob) |
252821 |
56 |
Nylon Bearing |
422520 |
57 |
Belt |
382099 |
58 |
3472 Center Shield Assembly |
604739 |
59 |
Rubber Draw Latch |
281300 |
60 |
3472 right Belt Shield |
723502 |
61 |
3472 left Belt Shield |
723501 |
62 |
Hex Whiz Bolt |
253173 |
63 |
Speed Nut |
254431 |
64 |
right Mulch Plate |
644612 |
65 |
left Mulch Plate |
644613 |
66 |
3452/61/72 Mulch End Cap |
644058 |
67 |
Flex Discharge Shield Assembly |
604317 |
68 |
3472 Gearbox Shield |
729931 |
69 |
Roller Mount |
755071 |
70 |
Carriage Bolt |
247135 |
71 |
Carriage Bolt |
247253 |
72 |
72" Deck Auxilliary Front Shroud |
724590 |
73 |
9.75 Quick Disconnect UN Half Sleeve |
398918 |
74 |
Quick Disconnect Splined Yoke |
401019 |
75 |
#6 Yoke with Sleeve |
401018 |
76 |
Zerk Grease Fitting |
280740 |
77 |
3472 Decal Set |
603284 |
