Genuine OEM Grasshopper® Mower Parts Diagrams

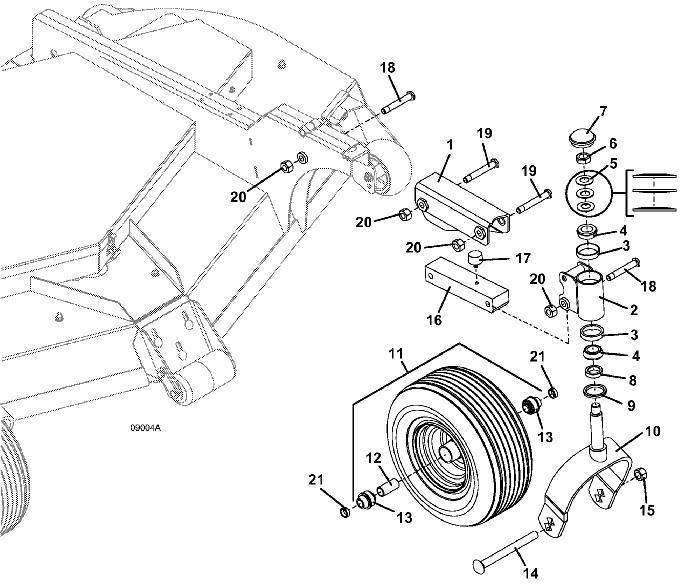

Wheel Lift Assembly • 3472 Front Mount Deck
2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
3472/3572 right Lift Channel |
645530 |
- |
3472/3572 left Lift Channel |
645531 |
2 |
3472 Deck Fork Housing |
824983 |
3 |
Bearing Cup |
123522 |
4 |
Taper Bearing |
122522 |
5 |
Spring Washer |
257320 |
6 |
Nylon-Top Jam Lock Nut |
254505 |
7 |
Domed Dust Cap |
481434 |
8 |
Spacer |
282615 |
9 |
Seal |
125855 |
10 |
Tapered Bearing Fork |
645220 |
11 |
Semi-Pneumatic Wheel & Bearing Assembly 13 x 6.5 x 6 |
603976 |
12 |
Center Rear Axle Spacer |
902429 |
13 |
DP Wheel Ball Bearing |
120048 |
14 |
Carriage Bolt |
247725 |
15 |
Lock Nut |
253970 |
16 |
Deck Stabilizer with Bumper |
822312 |
17 |
Rubber Bumper |
424053 |
18 |
Hex Bolt |
243609 |
19 |
Hex Bolt |
243614 |
20 |
Lock Nut |
253930 |
21 |
Axle Spacer |
902422 |
