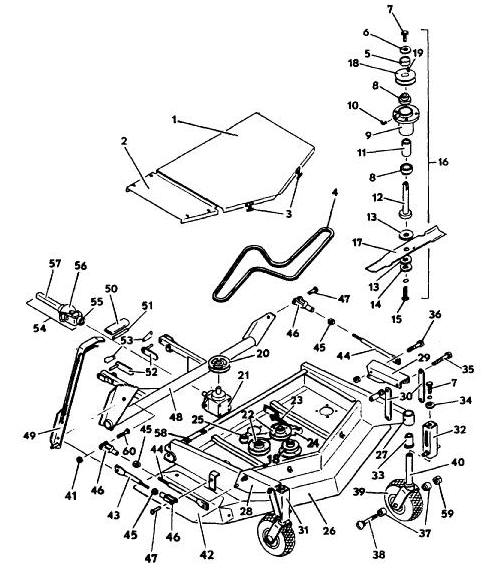

Item # |
Description |
Part Number |
| 1 |
SHIELD ASSY -44 DECK |
603771 |
| 2 |
SHIELD - BELT RT 44 |
722270 |
| 3 |
LATCH RUBBER DRAW |
281301 |
| 4 |
BELT |
383000 |
| 5 |
SPACER |
282630 |
| 6 |
WASHER - CUPPED |
257041 |
| 7 |
HEX BOLT |
243331 |
| 8 |
BEARING - BALL W/O FL SEAL |
120081 |
| 9 |
SPINDLE HOUSING GREASE |
320526 |
| 10 |
FITTING GREASE |
280734 |
| 11 |
SPACER - BEARING TUBE |
903640 |
| 12 |
SPINDLE - BLADE STD |
603775 |
| 13 |
WASHER - FIBER |
421200 |
| 14 |
WASHER |
257061 |
| 15 |
HEX BOLT |
243581 |
| 16 |
BLADE SPINDLE ASSY (includes items 6-15) |
623785 |
| 17 |
BLADE -15 HI-LIFT NOTCH |
320234 |
| - |
BLADE -15 MED LIFT |
320231 |
| 18 |
SHEAVE |
415826 |
| 19 |
KEY SQUARE |
281580 |
| 20 |
SHEAVE |
415875 |
| 21 |
GEARBOX RT ANGLE CW |
390020 |
| - |
GEARBOX RT ANGLE CCW |
390021 |
| 22 |
IDLER |
393225 |
| 23 |
TENSIONER ASSY - 9 INCH |
603745 |
| - |
HEX BOLT |
243290 |
| - |
YOKE CLEVIS |
265537 |
| - |
MOUNT - SPRING |
643574 |
| - |
CLEVIS PIN |
261284 |
| 24 |
ARM - IDLER W/BRG 44 |
603070 |
| - |
NYLON BEARING |
422585 |
| 25 |
BOLT SHOULDER |
259745 |
| 26 |
DECK - 44 MOWER W/LIFT |
643261 |
| 27 |
FITTING GREASE |
280777 |
| 28 |
LIFT CHANNEL - RT |
643532 |
| 29 |
LIFT CHANNEL - LT |
643533 |
| 30 |
STRAP - LINKAGE |
782888 |
| 31 |
FORK HOUSING ASSY RT |
603420 |
| 32 |
FORK HOUSING ASSY LT |
603421 |
| |
BEARING - REAMED OILITE |
833255 |
| 33 |
BUSHING - FLANGED SINTERED |
833260 |
| 34 |
WASHER |
774020 |
| 35 |
HEX BOLT |
243610 |
| 36 |
HEX BOLT |
243600 |
| 37 |
SPACER - ACLE |
902415 |
| 38 |
CARRIAGE BOLT |
247715 |
| 39 |
WHEEL ASSY - 4 - SEMI-PNEU |
603971 |
| |
BEARING - BALL |
120050 |
| |
SPACER - DECK WHEEL BRG |
902473 |
| 40 |
FORK - DECK LIFT |
643361 |
| 41 |
NUT LOCK |
253930 |
| 42 |
SHIELD - DISCHARGE 44 |
722325 |
| 43 |
LINKAGE - LIFT DECK |
603562 |
| 44 |
ROD ASSY - 44 LIFT DECK |
326020 |
| 45 |
NUT |
254470 |
| 46 |
YOKE CLEVIS |
265555 |
| 47 |
CLEVIS PIN |
261426 |
| 48 |
LIFT ARM - 44 MOWER |
643525 |
| 49 |
LEVER KIT - DECK LIFT |
503310 |
| 50 |
GRIP HANDLE |
422155 |
| 51 |
GRIP HANDLE |
422158 |
| 52 |
PIN - ATTACHING |
643625 |
| 53 |
SAFETY PIN |
261848 |
| 54 |
UN HALF SHAFT |
398515 |
| 55 |
YOKE |
401010 |
| 56 |
CROSS & BEARING |
121010 |
| 57 |
YOKE & SHAFT |
402605 |
| 58 |
NUT |
254431 |
| 59 |
NUT LOCK |
253970 |
| 60 |
HEX BOLT |
243580 |
