grasshopper

6144 Deck

Year Model:1987

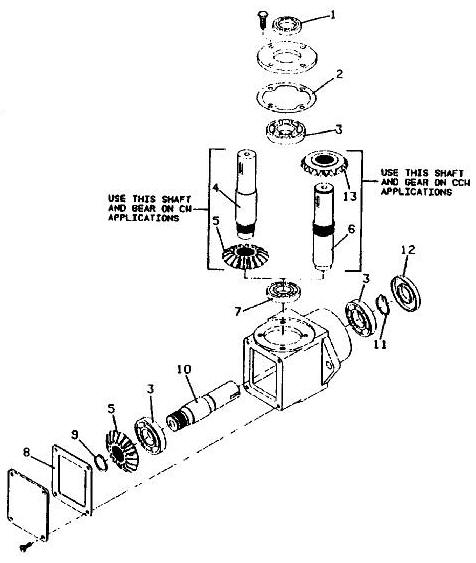

Right Angle Gearbox




Click On The Part Number For Details

Item #

Description

Part Number

1 SEAL 125336
2 GASKET CAP GEARBOX 420201
3 BEARING BALL 120071
4 SHAFT .875 393515
5 GEAR BEVEL - 8 PITCH 392500
6 SHAFT 1.000 393517
7 BEARING BALL 120065
8 GASKET COVER GEARBOX 420200
9 RETAINER EXTERNAL 263530
10 SHAFT .875 393513
11 RETAINER EXTERNAL 263540
12 SEAL 125339
13 GEAR BEVEL - 8 PITCH 392501
14 GEARBOX RT ANGLE CW 390020
15 GEARBOX RT ANGLE CCW 390021
